Vendor:Blackmagic Design

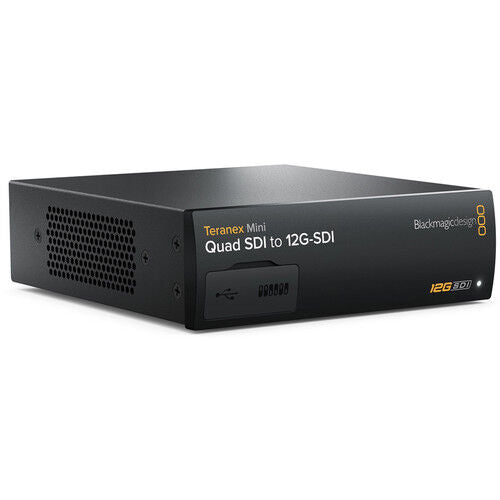

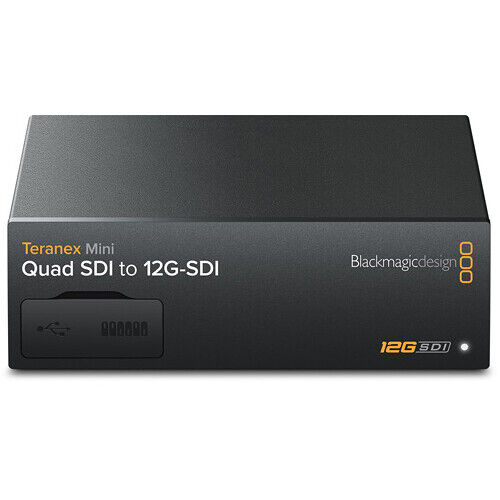

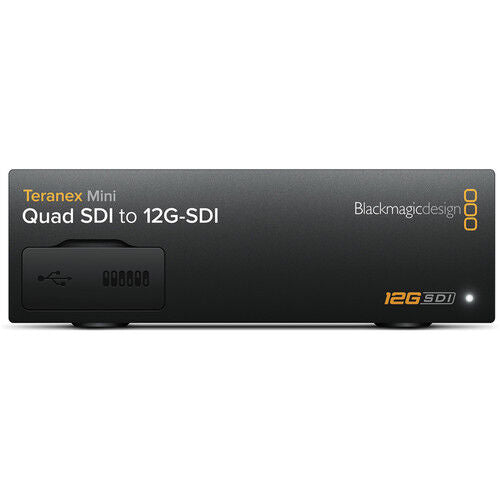

Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter

$945.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
  • Software SD Card with Manual
  • Limited 3-Year Manufacturer Warranty

Key Features

  • Quad-Link 12G-SDI Input
  • 2 Single-Link 12G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-bit, 48 kHz Audio
  • Control via DIP Switches or Software
  • USB 2.0 Port for Firmware Updates
  • Requires IEC C14 Power Cable

Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.

Blackmagic Design Teranex Mini Specs

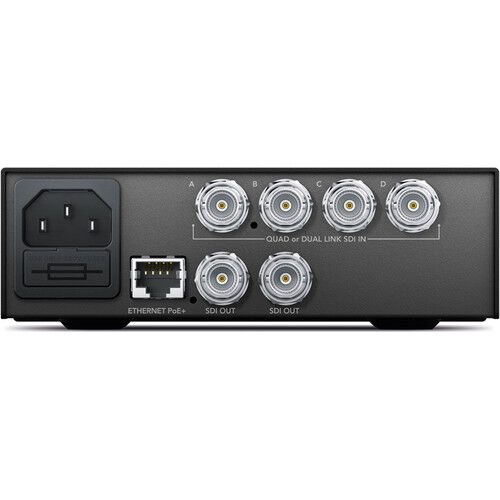

Video Inputs

4 x BNC 12G-SDI
Video Outputs

2 x BNC 12G-SDI
Other I/O

1 x RJ-45 Ethernet
1 x USB
Re-clocking

Yes
Format Support

4096 x 2160 23.98/24/25/29.97/30
3840 x 2160 23.98/24/25/29.97/30/50/60
2048 x 1080p 23.98/24/25
2048 x 2160PsF 23.98/24/25
1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL
SDI Video Sampling

4:2:2, 4:4:4
SDI Audio Sampling

24-bit, 48 kHz
SDI Color Space

YUV, RGB
Settings Control

Front-panel mini switches
USB
Ethernet
Front-mounted smart panel (available separately)
Power Supply

Built-in AC power supply, required IEC C14 power cable not included
PoE+ (Power over Ethernet)
Power Consumption

16 W
Operational Voltage Range

90-240 VAC
Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 0-90%, non-condensing

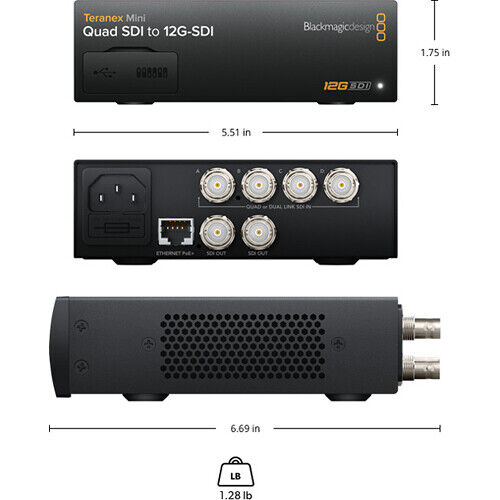

Dimensions

5.5 x 6.7 x 1.75" / 140 x 170 x 44 mm
Weight

1.3 lb / 580 g
