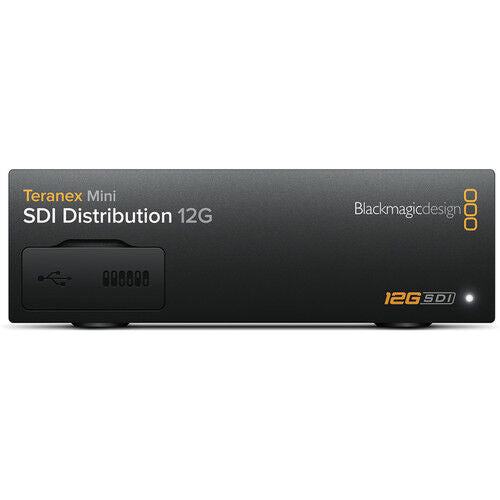

Blackmagic Design Teranex Mini SDI 12G Distribution image 1

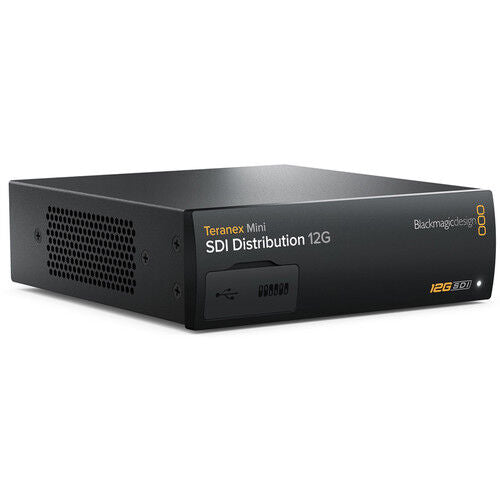

Blackmagic Design Teranex Mini SDI 12G Distribution image 2

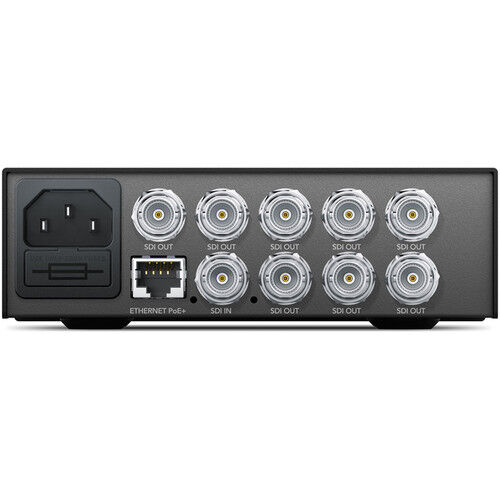

Blackmagic Design Teranex Mini SDI 12G Distribution image 3

Vendor:Blackmagic Design

Blackmagic Design Teranex Mini SDI 12G Distribution

$899.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Teranex Mini SDI 12G Distribution
  • Limited 3-Year Manufacturer Warranty

Key Features

  • Distribute Signal to Multiple Devices
  • 1 x 12G-SDI Input up to 4K
  • 8 x 12G-SDI Outputs to Match Input
  • 4K/2K/HD/SD Automatic Switching
  • Reclocking, 16-Channel Audio Support

Blackmagic Design Teranex Mini Specs

Key Specs

Inputs

1 x BNC (12G-SDI) Female
Embedded Audio

SDI: 16-Channel
Outputs

8x BNC (12G-SDI) Female
Video Format

SDI (4:4:4/4:2:2)
4096 x 2160: 23.98/24/25 fps
3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080p: 23.98/24/25 fps
2048 x 1080PsF: 23.98/24/25 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF: 23.98/24/25/29.97/30 fps
1280 x 720p: 50/59.94/60 fps
720 x 576i: 50 fps
720 x 480i: 59.94 fps

Interfaces

Inputs

1 x BNC (12G-SDI) Female
Embedded Audio

SDI: 16-Channel
Outputs

8x BNC (12G-SDI) Female
Other I/O

1x RJ45 (10/100 Mbps Ethernet) Input/Output
1x Mini-USB (Firmware) Input

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Reclocking

Yes
HDR Support

No
HDCP Support

No
EDID Support

No

Transmission

Video Format

SDI (4:4:4/4:2:2)
4096 x 2160: 23.98/24/25 fps
3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080p: 23.98/24/25 fps
2048 x 1080PsF: 23.98/24/25 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF: 23.98/24/25/29.97/30 fps
1280 x 720p: 50/59.94/60 fps
720 x 576i: 50 fps
720 x 480i: 59.94 fps
Audio Format

Unspecified Digital Signal: 48 kHz / 24-Bit

Power

Power I/O

1x IEC C14 Input
Power Consumption

Power Supply: 100 to 240 VAC (16 W)
ESD Protection

No

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions

-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions

6.7 x 5.5 x 1.8" / 170.2 x 139.7 x 45.7 mm
Weight

1.28 lb / 581 g
