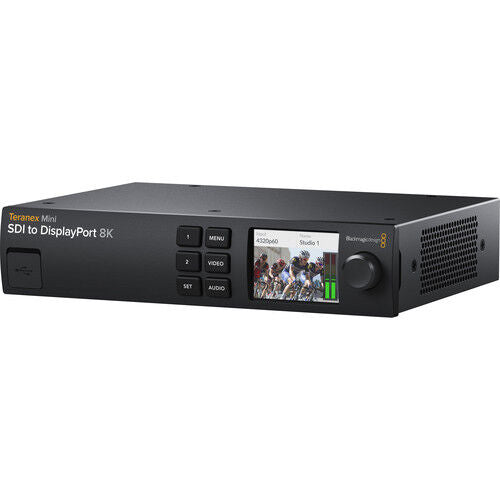

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter image 1

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

Name: Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Brand: Blackmagic Design
SKU: BMD-CONVN8TRM/AA/SDIDP
Price: 2285.00 AUD
Availability: OutOfStock

$2,285.00 AUD

Product variants

Pairs well with

Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
4 x Rubber Foot
Limited 1-Year Manufacturer Warranty

Key Features

Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
Accepts Third-Party Calibration Probes
12G-SDI I/O / DisplayPort/USB-C D.P. Out
2 x Selectable, On-Screen Scopes
Auto-Convert 2SI and Square Division
Supports HDR Workflows
Supports 33-Point 3D LUTs

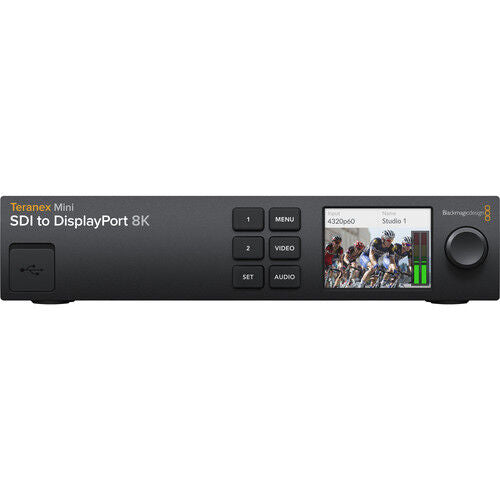

Front-Panel Interface, Audio Meters
Rack-Mountable with Separate Kit

Features

SDI to DisplayPort Conversion

Converts SDI sources to DisplayPort, supporting up to DCI 8K60 input

Quad-Link 12G-SDI

Quad-link 12G-SDI inputs with loop outs

SDI & DisplayPort Outputs

Quad-link 12G-SDI output, one USB-C DisplayPort output, and two full-size DisplayPort outputs

Pro Monitor Compatibility

Compatible with pro monitors like the Apple 32" Pro Display XDR

Calibration Tool Compatibility

Supports third-party calibration probes like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment on connected displays

HDR Support

Supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs

Live Scope Overlays

Overlay up to two live scopes on the monitor

3D LUT Support

Supports 3D, 10-bit LUTs with two front-panel control buttons

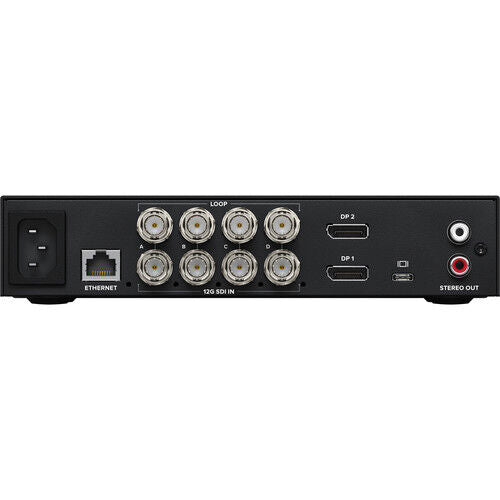

Inputs/Outputs

Video Inputs	4x BNC (12G-SDI)
Audio Inputs	No
Video Outputs	4x BNC (12G-SDI) (Loop Output) 2x DisplayPort (DisplayPort 1.4) 1x USB-C (DisplayPort 1.4)
Audio Outputs	2x RCA Analog
Other I/O	1x RJ45 Control 1x USB-C

Format Support

Input Video Format	SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Output Video Format	SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Output Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio	SDI: 16-Channel

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Hardware

Display Size	2.2"
OS Compatibility	Windows 10 macOS 10.14 macOS 10.1 or Later

Power

Power I/O	1x IEC C14 Input
Power Consumption	Device: 100 to 240 VAC (35 W)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

General

Dimensions	8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm
Weight	2.6 lb / 1.18 kg

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

Items Included
