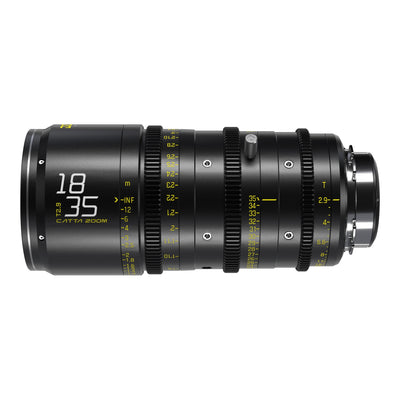

DZOFILM Catta Ace 18-35mm T2.9 cine zoom lens, side view

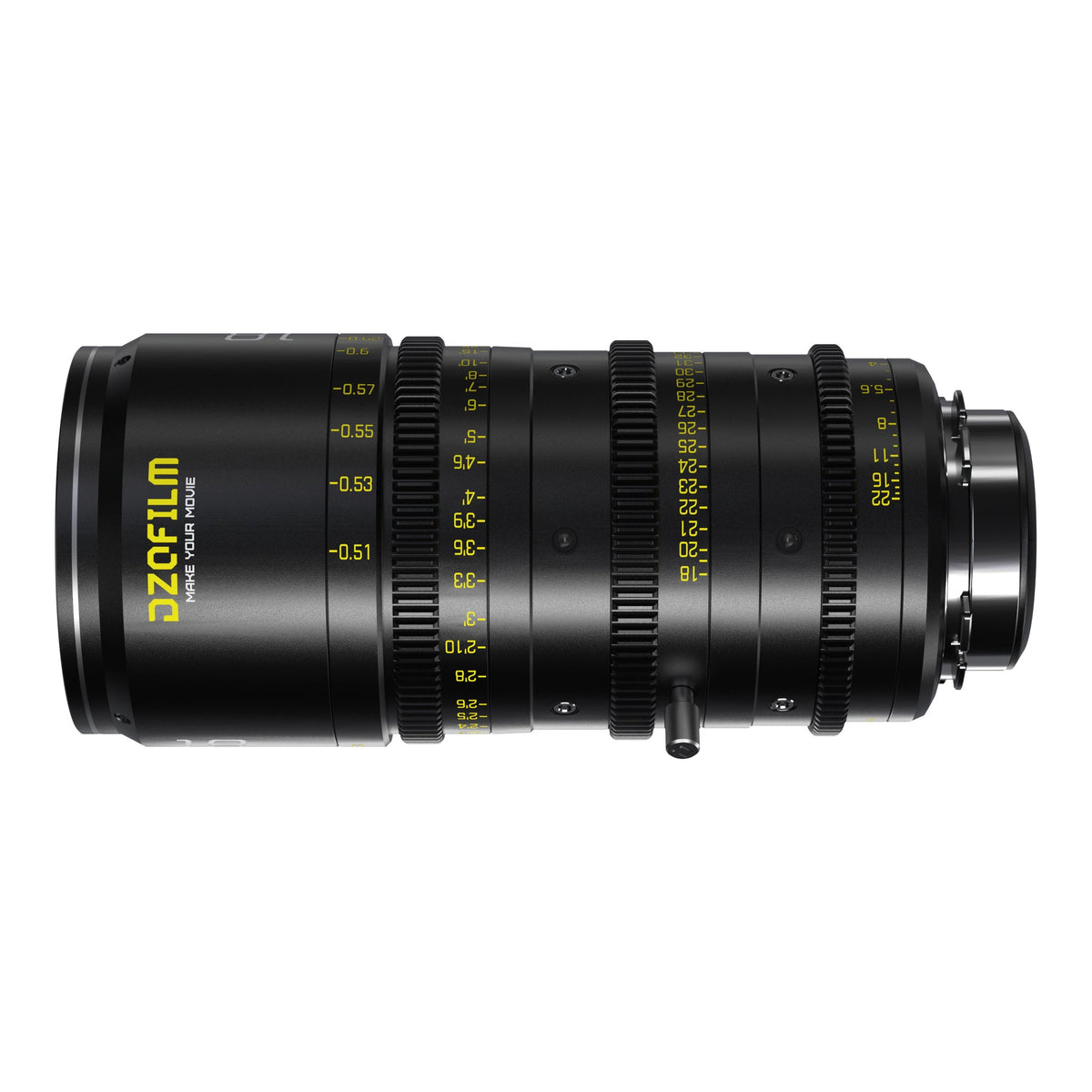

DZOFILM Catta Ace 18-35mm T2.9 cine zoom lens, opposite side view

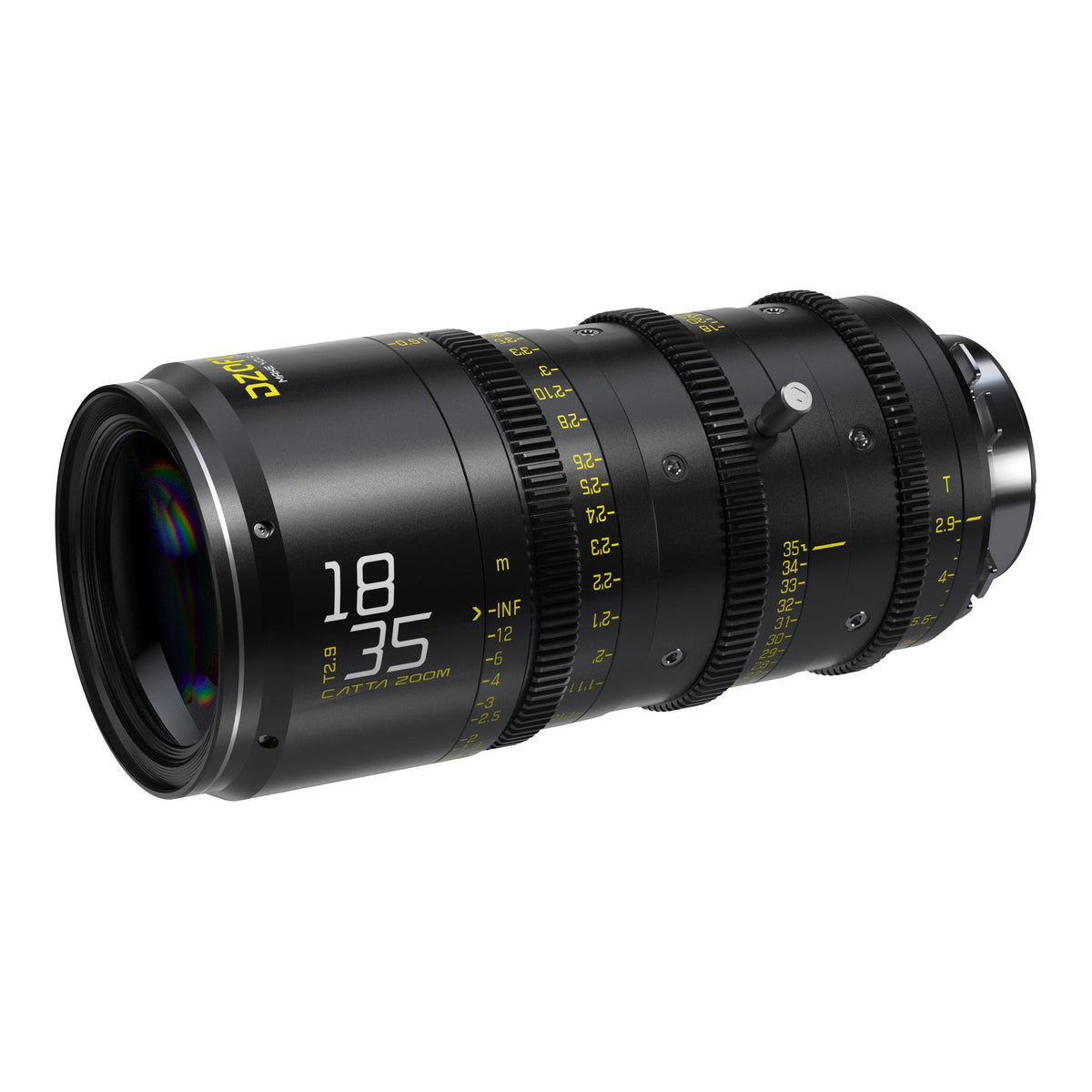

DZOFILM Catta Ace 18-35mm T2.9 cine zoom lens, front angle view

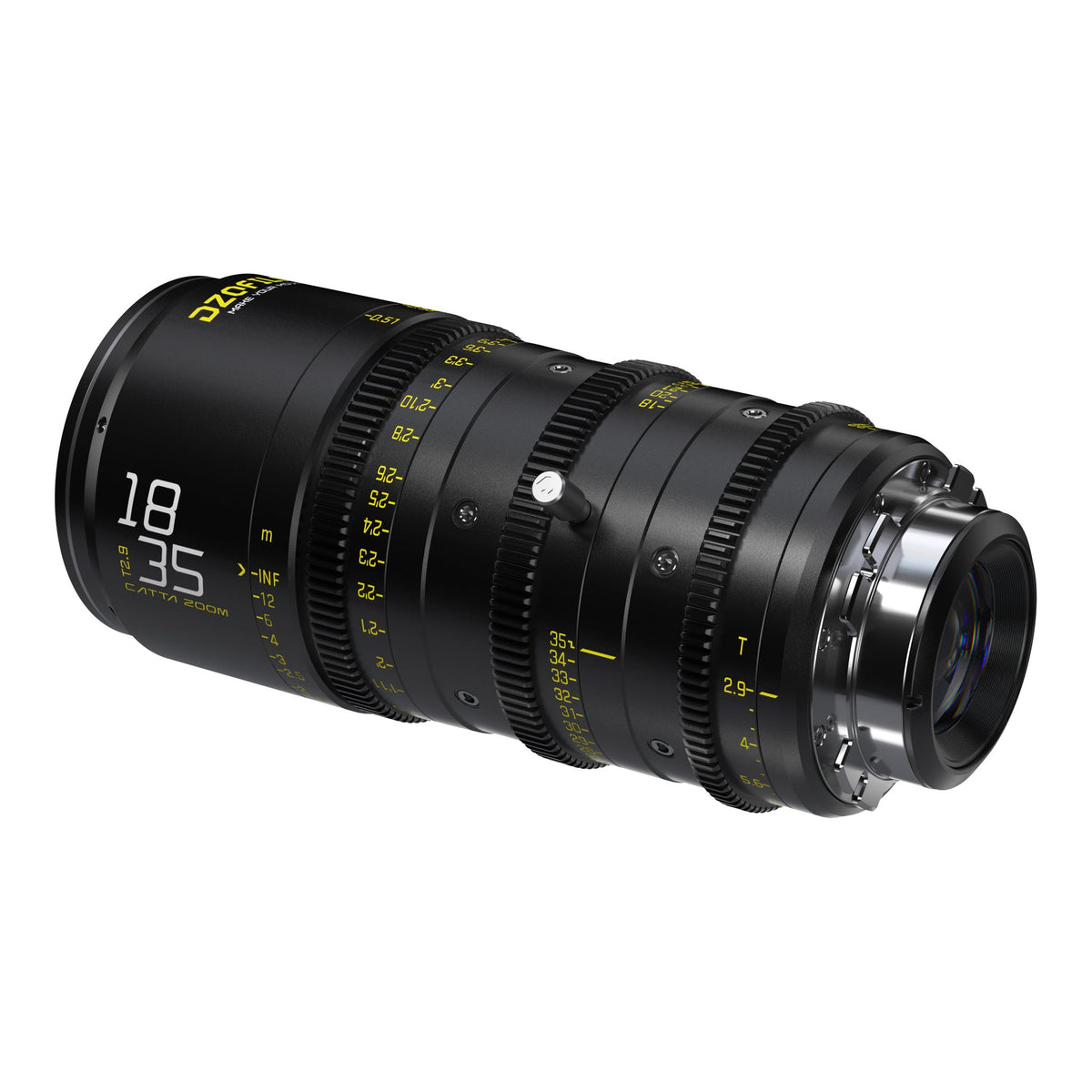

DZOFILM Catta Ace 18-35mm T2.9 cine zoom lens, rear angle view
DZOFILM Catta Ace 18-35mm T2.9 cine zoom lens, retail box

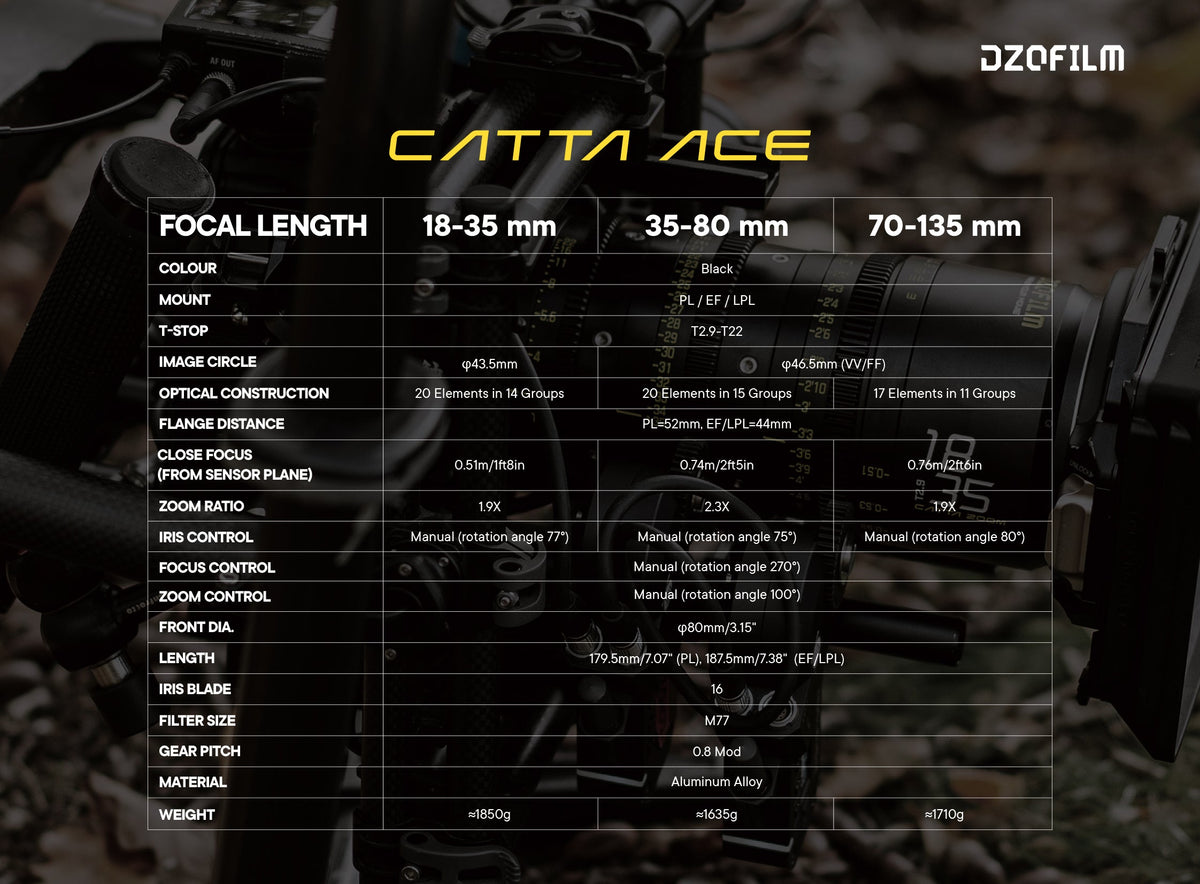

DZOFILM Catta Ace cine zoom lens series specifications
DZOFILM Catta Ace 18-35mm, 35-80mm and 70-135mm cine zoom lens series

Vendor:DZOFILM

DZOFilm Catta Ace FF 18-35mm T2.9 Cine Zoom Lens (PL/EF, Black)

$6,795.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this white Catta Ace FF 18-35mm T2.9 Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 20.1" close focus range.

True to its cine design, it has a focus rotation of 210°, a 100° zoom rotation range, and a 77° iris rotation range. The lens features a PL mount, and an EF mount bayonet is included to change out with the included screws and shim kit. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.

Key Features

  • Maintains Focus Throughout Zoom Range
  • Natural Color Rendering
  • Consistent T2.9 to T22 Aperture
  • Covers Full-Frame Sensors
  • 16-Blade Iris for Soft Bokeh
  • 20.1" Minimum Focus Distance
  • Comes with EF Bayonet, Interchangeable
  • 270° Focus Rotation
  • 77mm Filter Diameter, 1.9x Magnification
  • 80mm Front Diameter
Focal Length 35 to 80mm
Lens Mount ARRI PL Or Canon EF
Format Full Frame
Image Circle 43.5 mm
Maximum Aperture T2.9
Minimum Aperture T22
Minimum Focus Distance From Unspecified Point in Lens: 29.5" / 75 cm
Optical Design 20 Elements in 14 Groups
Diaphragm Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 240°
Iris Rotation 75°
Zoom Rotation 100°
Zoom Ratio 1.9x
Electronic Communication No
Image Stabilization No
Weight 3.4 lb / 1532 g

Content List:

1 x DZOFilm Catta Zoom PL mount lens

1 x Front Lens Cap

1 x Rear Lens Cap

1 x EF bayonet

1 x EF Rear cap

1 x Shim Set

1 x Support Base

1 x Support Rod
