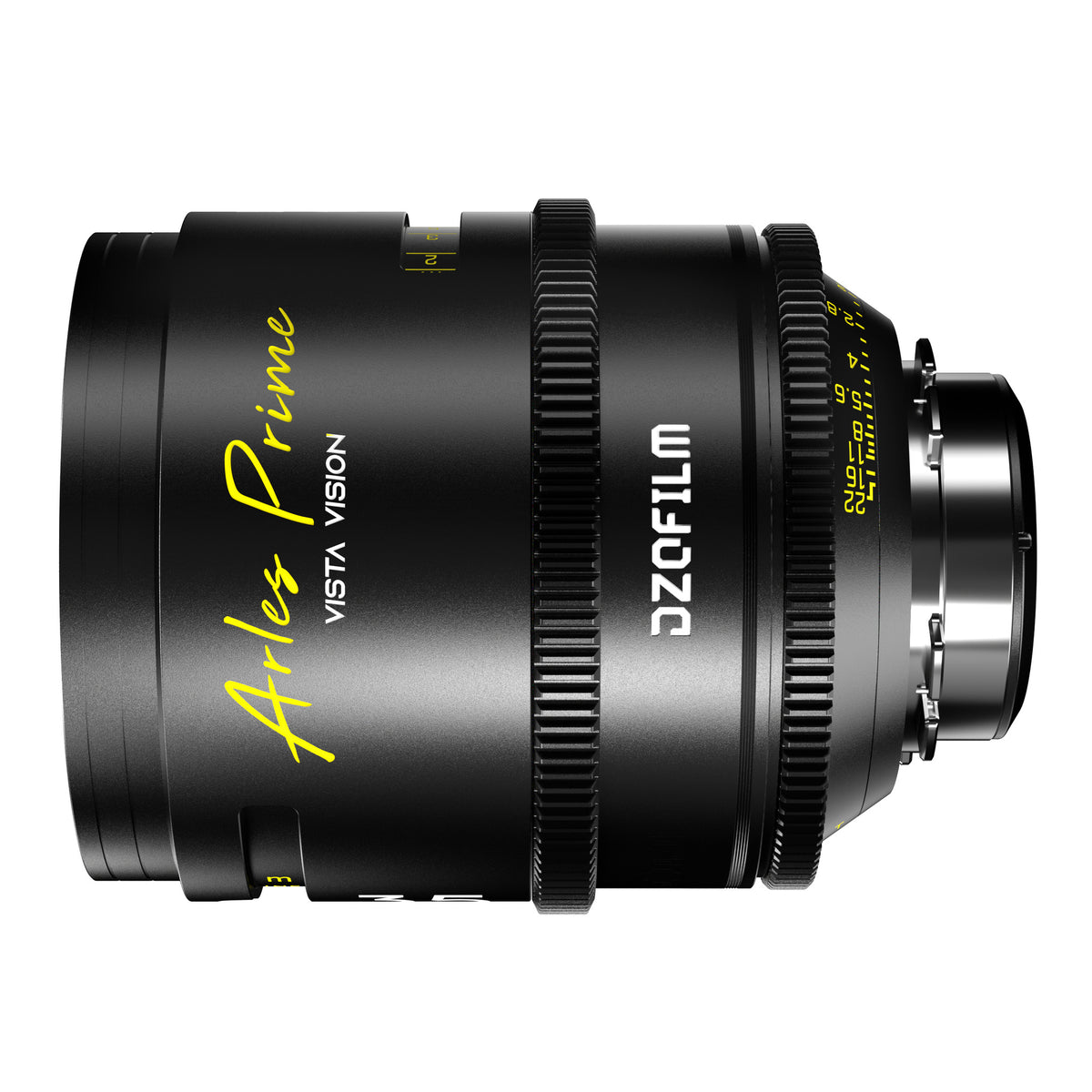

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Meter), opposite side view

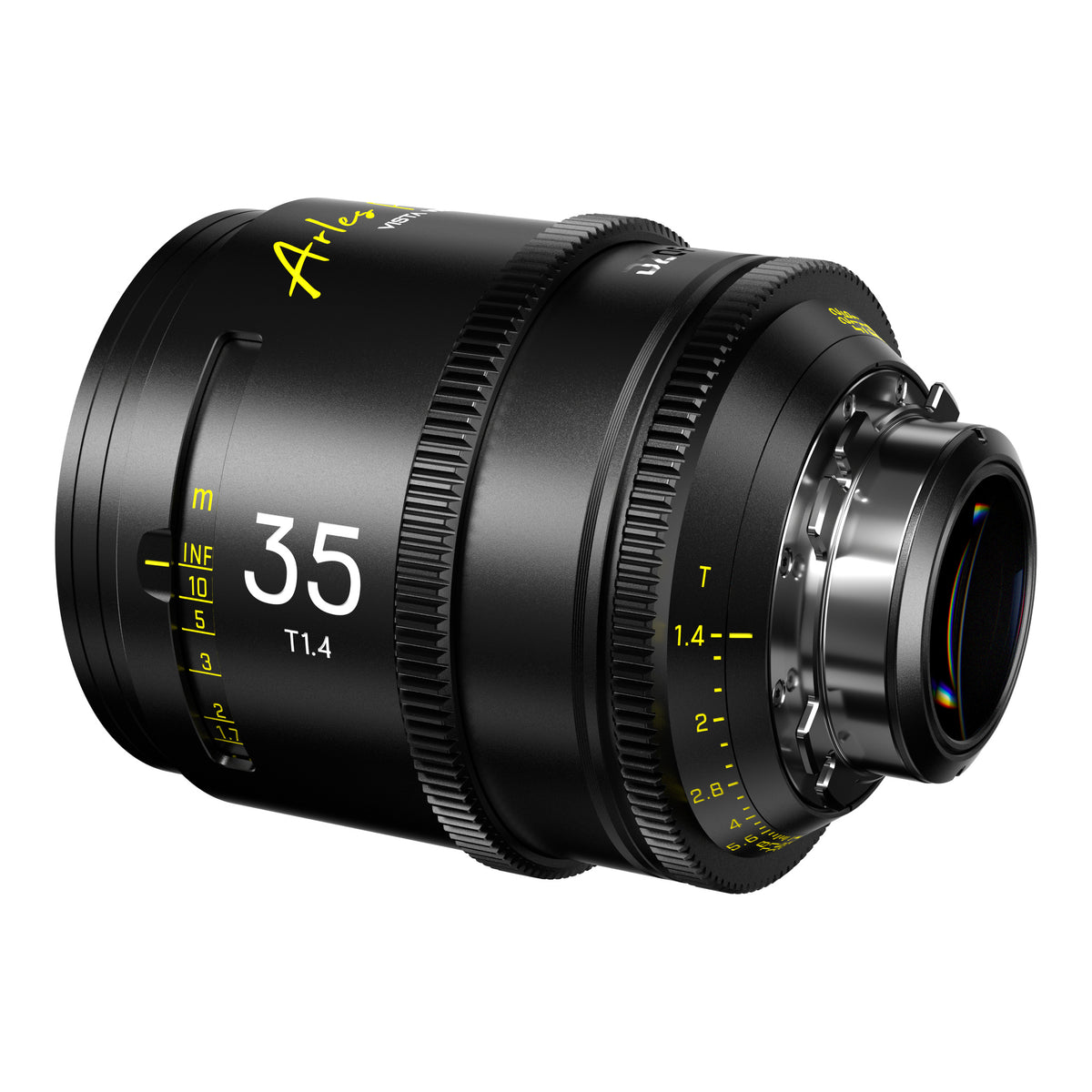

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Meter), rear angle

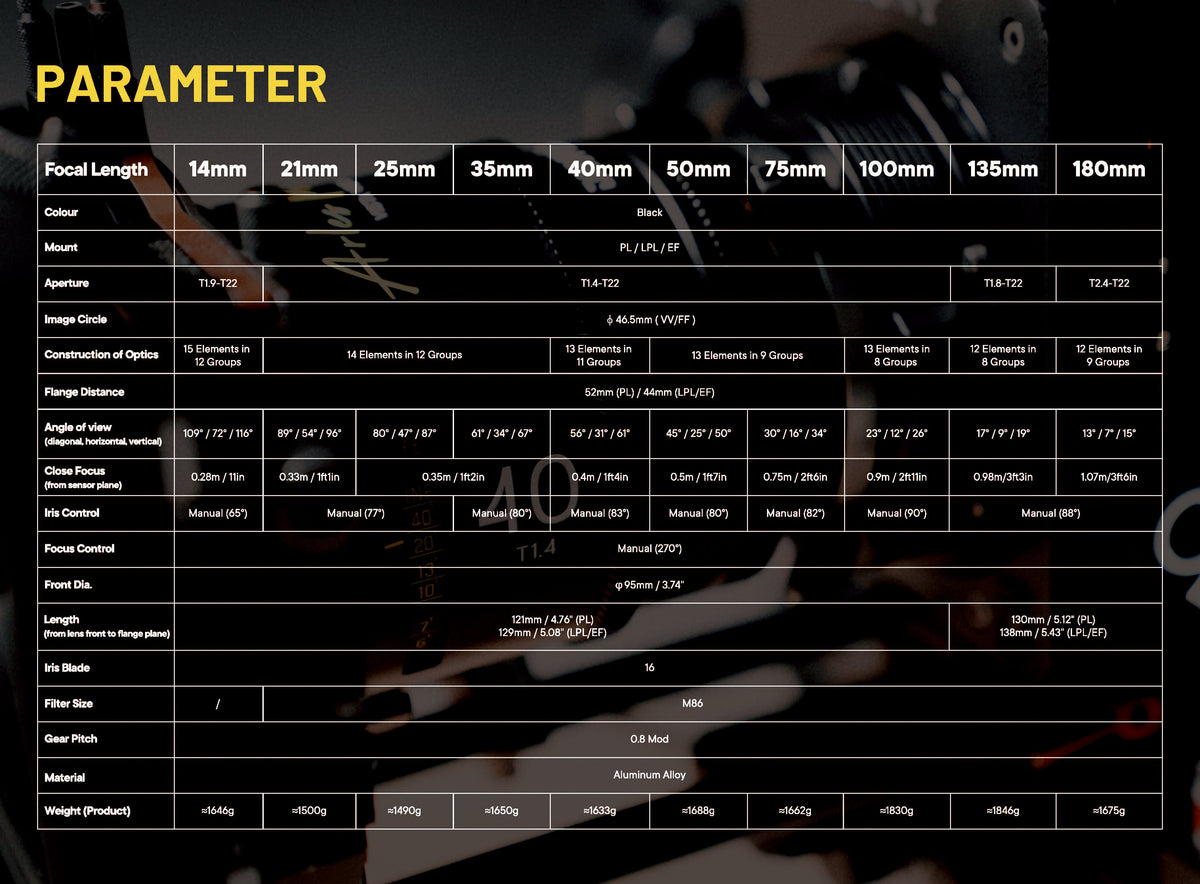

DZOFILM Arles Prime Lens Parameter Chart
DZOFILM Arles Prime Lens Feature Poster

Vendor:DZOFILM

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Meter)

$3,425.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Features

  • Covers Full Frame Sensors
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris
  • 95mm Outer Diameter
  • 14 Elements in 12 Groups
  • 270° Focus Rotation, 77° Iris Rotation
  • 13.78" Minimum Focus Distance
  • Cinema-Standard Gearing

The lens features an 67.15° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outer diameter, 16-blade aperture
  • Optical construction of 14 elements in 12 groups
  • 270° focus rotation, 77° iris rotation
  • 13.78" minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

Specs

Focal Length

35mm
Maximum Aperture

T1.4
Lens Mount

ARRI PL
Lens Format Coverage

Full Frame
Filter Thread

86 mm
Image Stabilization

No
Maximum Aperture

T1.4
Minimum Aperture

T22
Lens Mount

ARRI PL
Lens Format Coverage

Full Frame
Image Circle

46.5 mm
Angle of View Full Frame
Horizontal: 61.1°
Vertical: 34.23°
Diagonal: 67.15°
Focus Scales

Metric
Optical Design

14 Elements in 12 Groups
Filter Thread

86 mm
Minimum Focus Distance

From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades

16
Image Stabilization

No
Gear Standard

Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation

Focus 270° (Manual Only)
Iris 77° (Manual Only)
Diameter

3.7" / 95 mm
Length

4.8" / 121 mm
Weight

3.3 lb / 1650 g
