Feelworld F7 Plus 7" Touchscreen 1200 nits HDMI Field Monitor
Pairs well with
1-Year Warranty
Couldn't load pickup availability
Pickup available at Shop Front
Usually ready in 24 hoursFeelworld F7 Plus 7" Touchscreen 1200 nits HDMI Field Monitor
Features
- 7" 1920 x 1200 Touchscreen Monitor
- HDMI Input and Output
- Accepts SD, HD, and DCI/UHD 4K Video
- High 1200 cd/m² Brightness
- 1200:1 Contrast Ratio
- L-Series Battery Plate and DC Output
- 160° Viewing Angle
- Multiple Built-In Imaging Tools

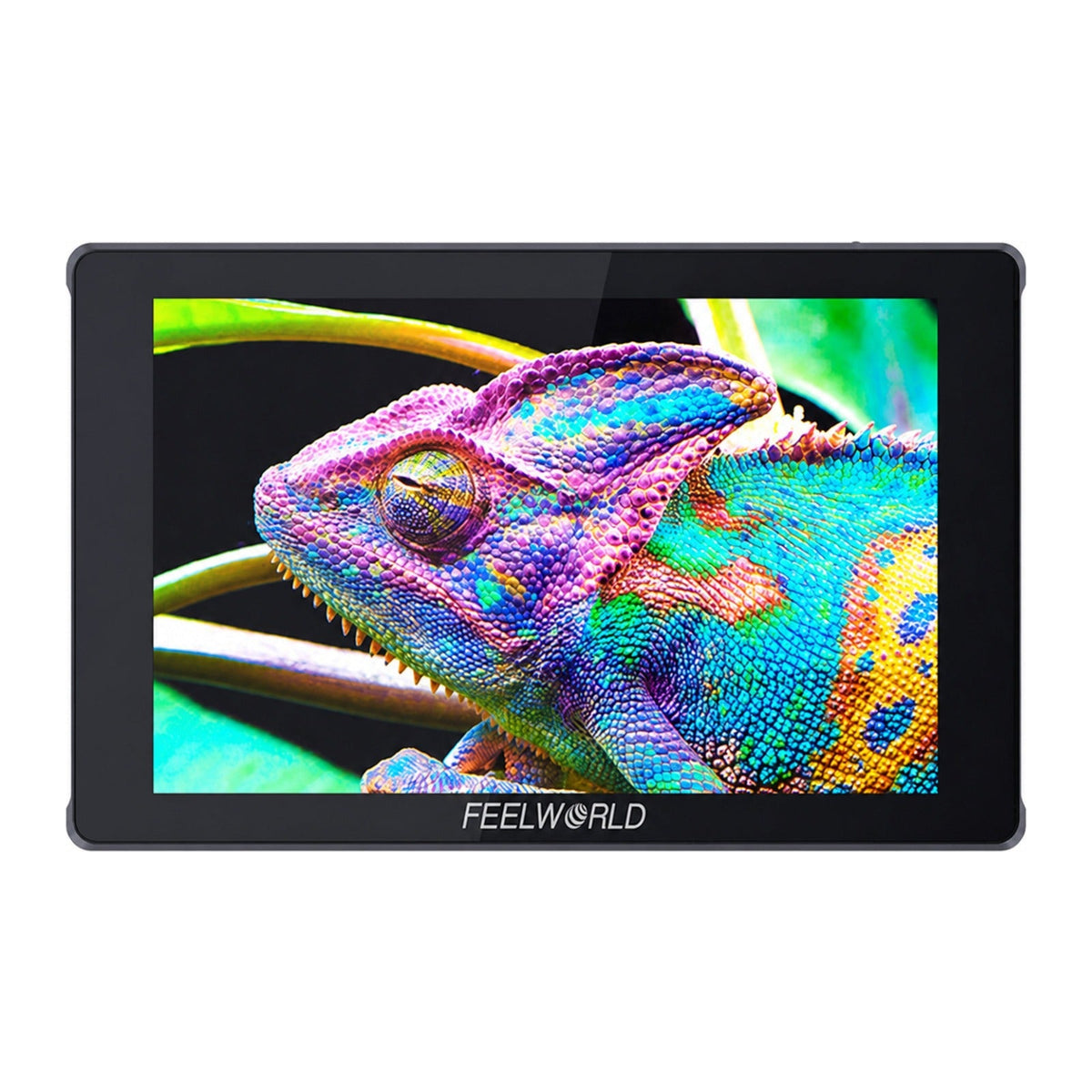

Feelworld 7" Touchscreen HDMI Field Monitor
Designed for professional and on-the-go videographers, the Feelworld 7" Touchscreen HDMI Field Monitor offers crisp, high-resolution monitoring in a compact and lightweight design. Featuring a 1920 x 1200 resolution display, this monitor easily mounts on top of your camera or handheld rig for real-time video assessment.

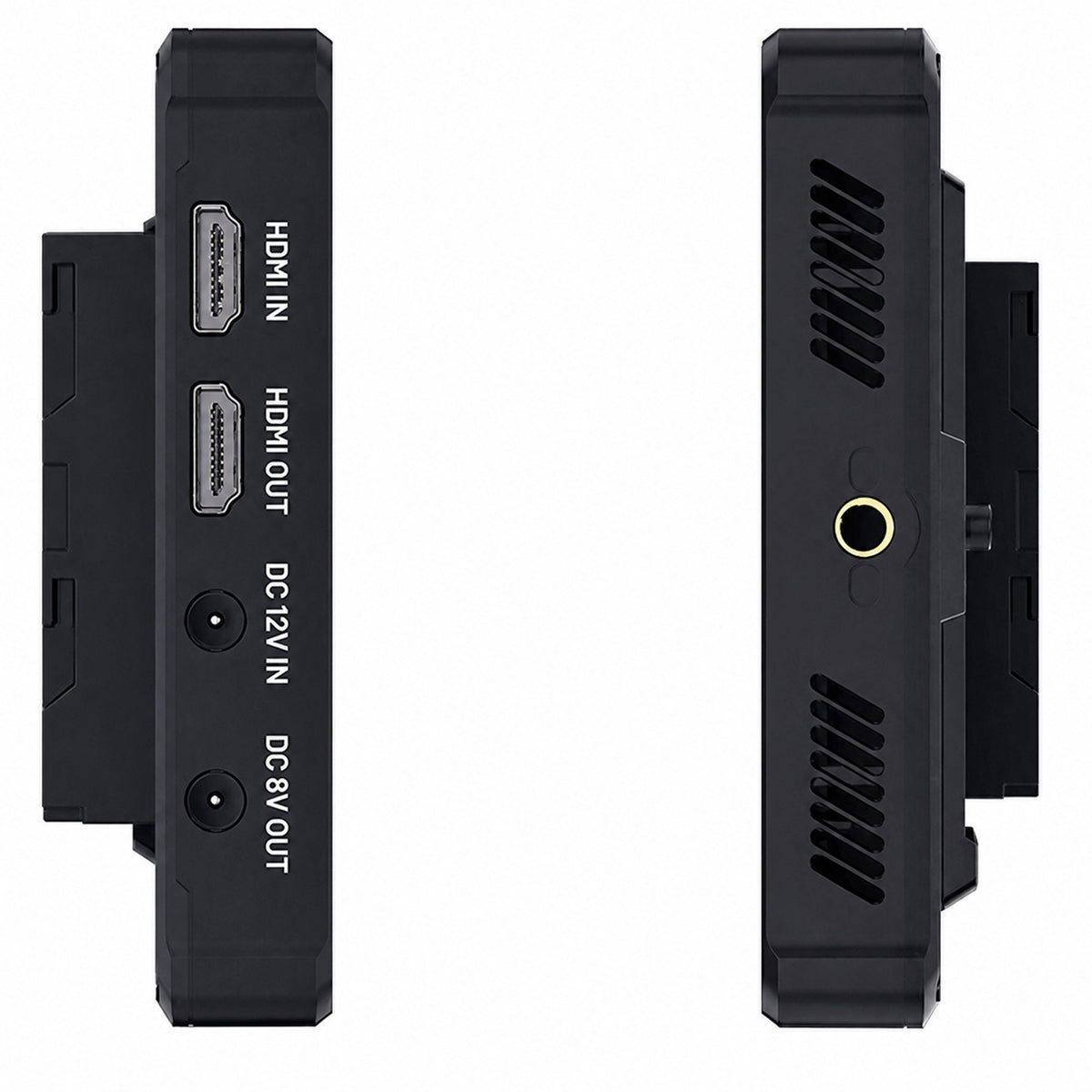

With HDMI input and loop output, the monitor supports up to DCI/UHD 4K resolutions, ensuring seamless integration with high-quality camera systems.
Versatile Power Options & Connectivity

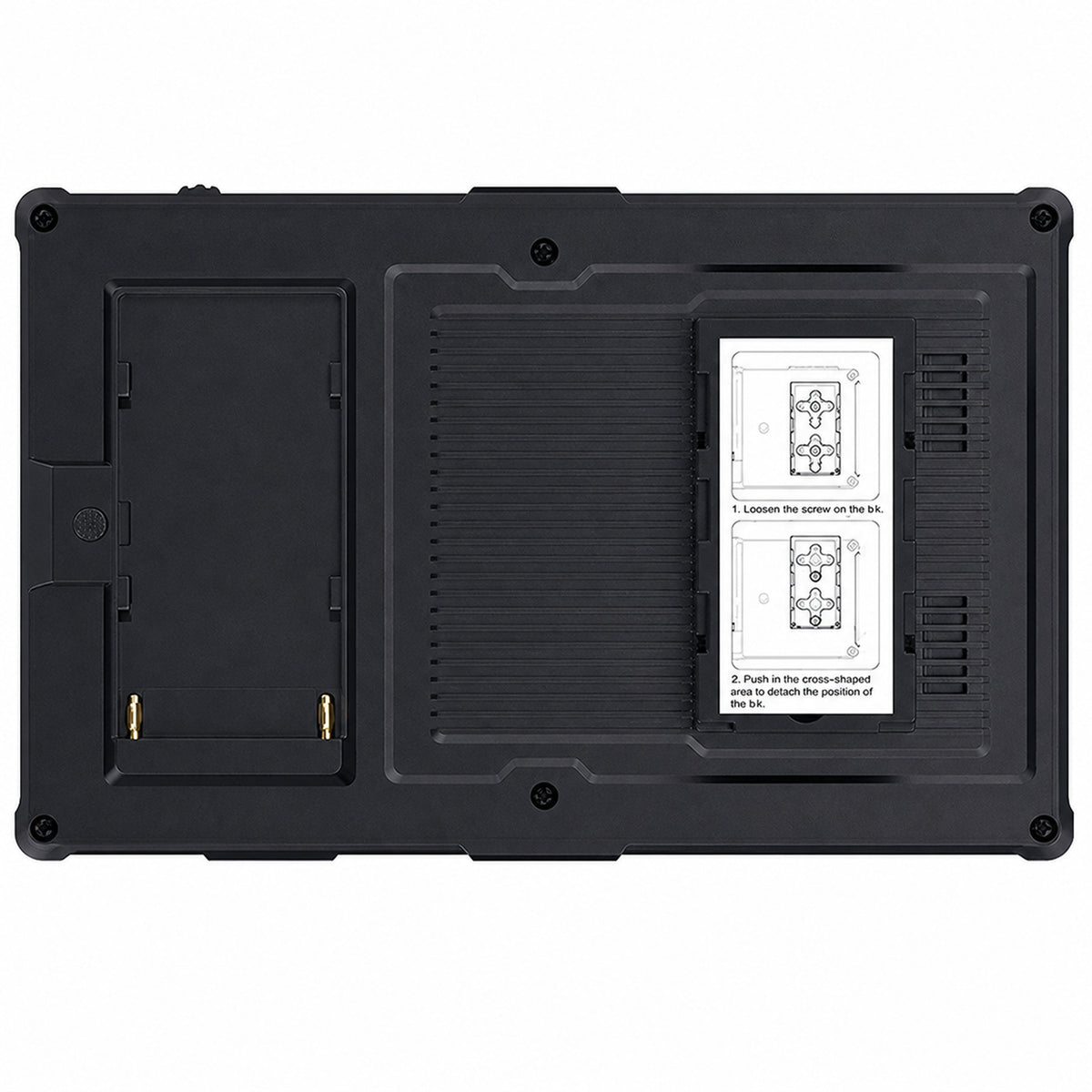

The monitor features an L-series battery plate on the rear, with additional USB-C and DC barrel inputs for flexible power options. A DC barrel output is also available, allowing you to power external devices like cameras and accessories.
A built-in mounting block on the back enables easy attachment of wireless receivers or other accessories, making it a versatile tool for professional workflows.
Advanced Monitoring Tools
To ensure color accuracy, focus precision, and exposure control, the monitor is equipped with a range of built-in image analysis tools, including:
✔ Vectorscope
✔ Histogram
✔ RGB Parade
With its intuitive touchscreen interface and high-resolution display, the Feelworld 7" monitor is an essential addition to any videographer’s kit, providing precise, real-time monitoring in any shooting environment.
Specs
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI 2.0 Input |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only] |
| Video Format | HDMI |
| Battery Type | 1x L-Series |
| Power Consumption | 15 W |
| Mounting | 1x Anti-Twist 1/4"-20 Female (Top) |
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 323 ppi |
| Color Gamut | 100% Rec. 709 |
| Image Controls | Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform |
Inputs/Outputs
| Video I/O | 1x HDMI 2.0 Input |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 5.5 mm (12 VDC) Input |
| Other I/O | No |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only] |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI |
Power
| Input Power | 7 to 24 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 15 W |
What's in the box:
1 x Feelworld F7 Plus Monitor
1 x L Bracket
1 x Mini HDMI to Full HDMI Cable
1 x Sunshade
