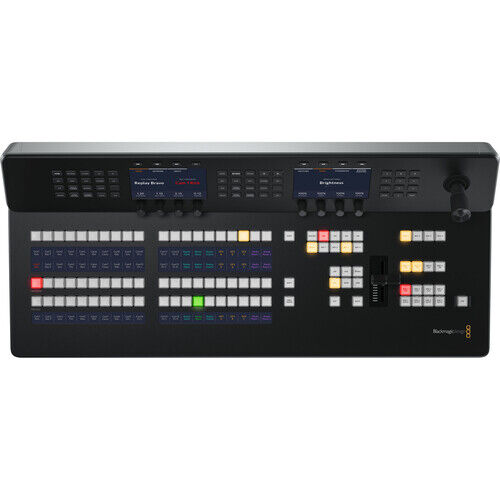

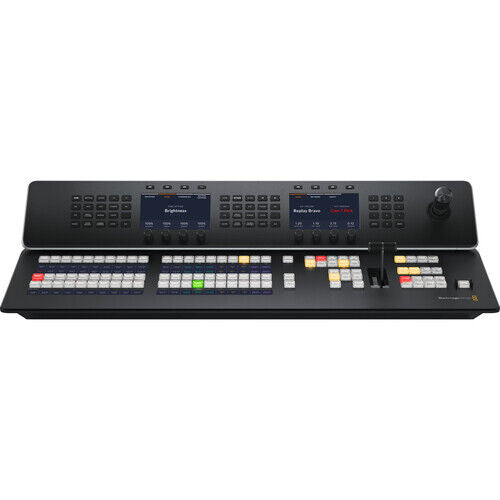

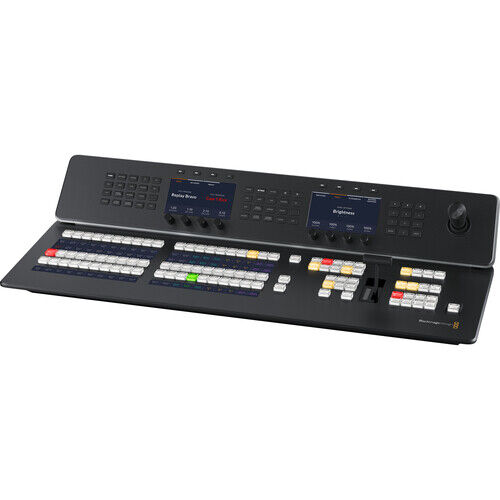

Blackmagic Design ATEM 1 M/E Advanced Panel 20

Items Included

• Blackmagic Design ATEM 1 M/E Advanced Panel 20
• Limited 1-Year Manufacturer Warranty

Key Features

• Control Panel for ATEM Switchers
• 20 Input Buttons
• 2 System Control LCDs
• 4 x Upstream & 4 x Downstream Keyers
• 1 x M/E Row
• Joystick for Precise DVE Control
• Ergonomically Designed T-Bar
• Single-Button Fade to Black
• Dedicated Preview Transition Button
• Color Backlit Buttons

The unit features a wide array of color backlit buttons, including 20 input buttons, and it has buttons for controlling up to four upstream and four downstream keyers as well as four M/E rows. A dynamic 3-axis joystick and an ergonomically designed T-bar facilitate precise, real-time DVE control with the T-bar, providing targeted adjustment prowess for wipes, fades, and other broadcast-quality transitions. In addition to allowing you to create adjustable auto transitions, the panel has a dedicated preview transition button and a single-button Fade to Black option that is applicable to the entire output, all at once.

Mains power is provided via an optional power cord connected to the IEC input, which also offers a second input option for redundant power. A built-in USB-C port is included for firmware updates. The compact panel design allows the unit to fit in standard equipment racks, so that it may be easily integrated in fly-away kits or broadcast trucks.

Switching Features

• 20 direct crosspoints
• 40 shifted crosspoints
• Tri-color LED crosspoint buttons
• 2 LCD menu displays
• 1 destination bus
• 1 source select bus
• Numeric keypad

Blackmagic Design ATEM 1 M/E Advanced Panel 20 Specs

Inputs / Outputs

Power

Physical
