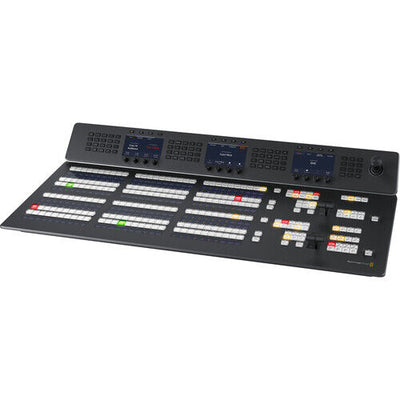

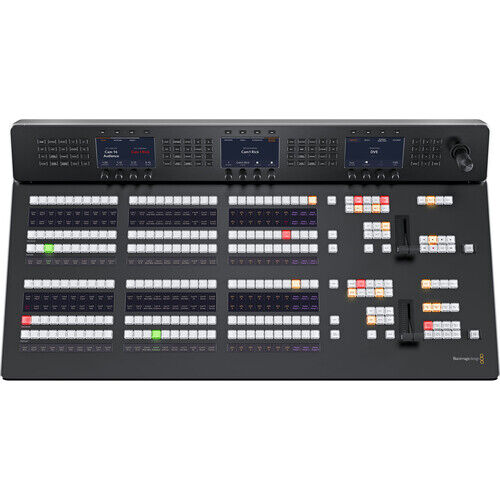

Blackmagic Design ATEM 2 M/E Advanced Panel 30

Items Included

• Blackmagic Design ATEM 2 M/E Advanced Panel 30
• Limited 1-Year Manufacturer Warranty

Key Features

• Panel for ATEM Constellation Switcher
• 2 x M/E Rows, 30 x Input Buttons Each
• 3 x System Control LCDs for Each Row
• High-Quality Buttons/Knobs/Controls
• 4 x GbE Ethernet Ports with Loopouts
• Custom Labeling, Redundant Power Supply
• 12 On-Air Indicators, 30 Cross-Points
• 3-Axis Joystick, Keypad, 2 x Fader Bars
• USB Type-C Input for Firmware Updates

Applications

Designed for complex live productions, the ATEM 2 M/E Advanced Panel 30 enables you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 30 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.

Compatibility

Provides pro switching controls for the ATEM Constellation HD line of switchers

Interface

• Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
• USB Type-C for firmware updates

Cross-Points

Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points

Mix Effect Rows

Two M/E rows, 30 input buttons per row

LCD Menu Displays

Three system control LCDs for each row with custom labeling for all rows and input buttons

Controls

One 3-axis joystick, one numeric keypad, and two fader bars

On-Air Indicators

12 indicators let you easily see which feeds are on air

DSK Selectors

Four transition previews with auto, cut, and tie/preview options

Blackmagic Design ATEM 2 M/E Advanced Panel 3... Specs

Power
