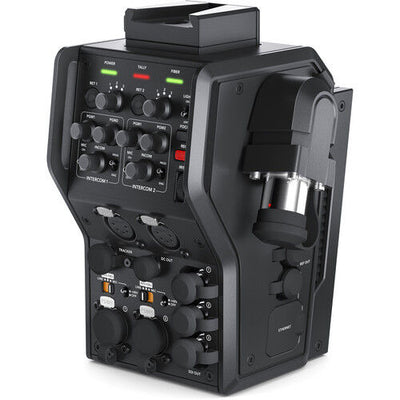

Blackmagic Design Camera Fiber Converter image 1

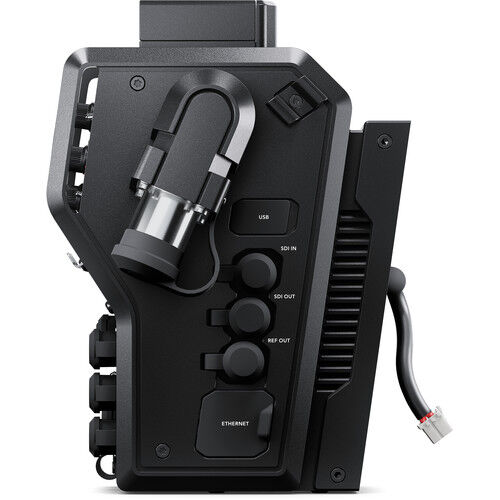

Blackmagic Design Camera Fiber Converter image 2

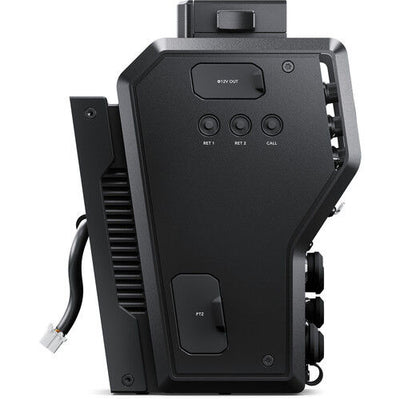

Blackmagic Design Camera Fiber Converter image 3

Vendor:Blackmagic Design

Blackmagic Design Camera Fiber Converter

$5,055.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Camera Fiber Converter
  • Camera Mounting Bracket with Screws
  • 3 x SDI Cables
  • Limited 1-Year Manufacturer Warranty

Key Features

  • For URSA Broadcast
  • Full Studio Connectivity
  • SMPTE Fiber Interface
  • 12G-SDI Output
  • 3 x 3G-SDI Return Feeds
  • 5-Pin XLR Talkback Headset Connections
  • Camera Controls Moved to Camera Rear

Blackmagic Design CINEURSANWFRCAM Specs

Connections

SMPTE Optical Fiber: 1 x SMPTE 304
12G-SDI Input: 1 x BNC
12G-SDI Output: 1 x BNC
3G-SDI Return Output: 3 x BNC
Talkback Headset: 2 x 5-pin XLR
Analog Audio Input: 2 x XLR (AES/mic/line)
Computer: 1 x USB Type-C
Video Standards

3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.9
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI Standards

SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Audio Sampling

24-bit, 48 kHz
Video Sampling

4:2:2
Bit Depth

10-bit
Color Space

REC 709, REC 2020
Dimensions

7.5 x 5.5 x 5.4" / 19.1 x 14 x 13.8 cm
Weight

4.9 lb / 2.2 kg
