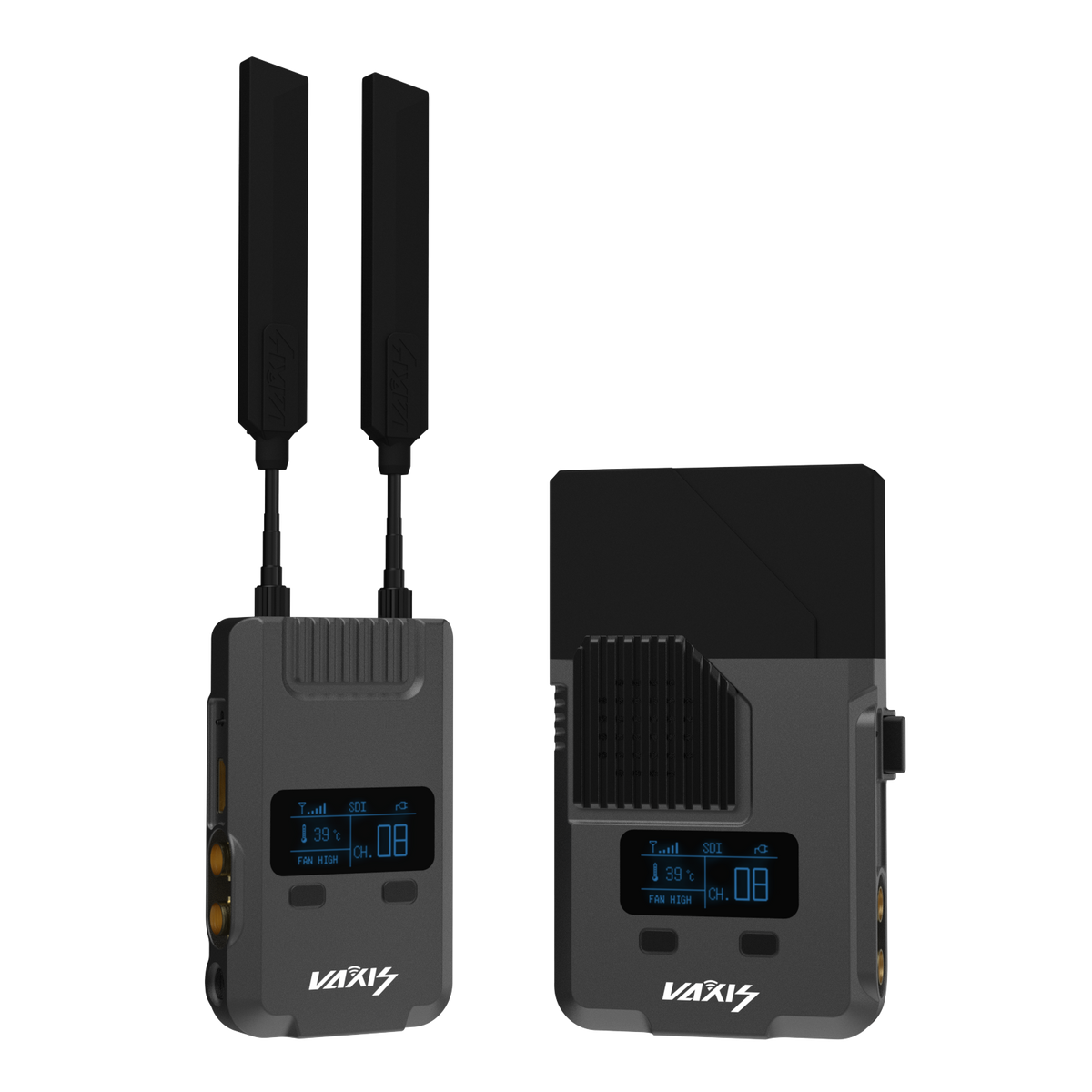

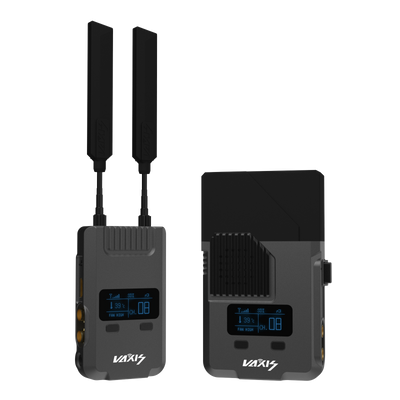

The Vaxis Storm 800 is a compact zero-latency wireless video transmitter and receiver set with up to 260 m (853 ft) line-of-sight range. It sends up to 1080p60 video with less than 1 ms of latency over the 5 GHz band, with 3G-SDI and HDMI inputs and outputs and 2-channel embedded audio.

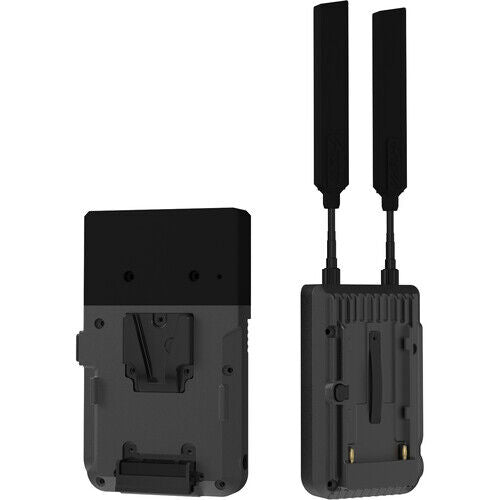

Power either unit through its 2-pin LEMO input or micro-USB. The receiver has a V-mount battery plate and the transmitter an L-series (NP-F) plate. 20 manually selectable channels help you run several pairs on one set without interference, and you can multicast to multiple receivers. The Storm 800 also works with other Storm-series units, including the 072 PRO, 058 PRO and CINE 8 monitors. Both units have built-in antennas, LCD status screens and side-venting cooling fans.

Key features

  • Up to 260 m (853 ft) line-of-sight range
  • Up to 1080p60 with less than 1 ms latency
  • 3G-SDI and HDMI inputs and outputs, 2-channel embedded audio
  • 20 selectable channels and multicast to multiple receivers
  • Compatible with Storm 072 PRO, 058 PRO and CINE 8
  • 2-pin LEMO or micro-USB power, V-mount (RX) and L-series (TX) plates
  • Built-in antennas, LCD screens and cooling fans

Specifications

Transmitter I/O 1x 3G-SDI in, 1x HDMI in, 1x 3G-SDI loop out
Receiver I/O 2x 3G-SDI out, 1x HDMI out
Video formats 1080p 60/59.94/50/24/23.98, 1080PsF, 1080i 60/59.94/50, 720p 60/50
Frequency 5.1 to 5.9 GHz
Range Up to 260 m (853 ft) line of sight
Latency Less than 1 ms
Input power 7 to 36 V DC
Operating temperature 0 to 40°C
Weight Transmitter 259 g, receiver 435 g
Mounting 1x 1/4"-20 on each unit

In the box

  • Transmitter
  • Receiver
  • Flight case
  • Power cable
  • SDI cable
  • 1-year manufacturer warranty
