Vendor:Blackmagic Design

Blackmagic Design Streaming Encoder 4K

$1,085.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Streaming Encoder 4K
  • Welcome Wallet with QR Code for Software Download
  • Limited 3-Year Manufacturer Warranty

Key Features

  • H.264 & H.265 Streaming to SRT or RTMP
  • 12G-SDI Input & Loop Output
  • DCI 4K Streaming up to 60 fps
  • Ethernet 10/100/1000BASE-T Support
  • SDI & HDMI Monitor Outputs
  • Integrated 2.2" LCD Screen
  • USB-C for Phone Tethering & Webcam Out
  • Tethers to 4G & 5G Phones for Streaming

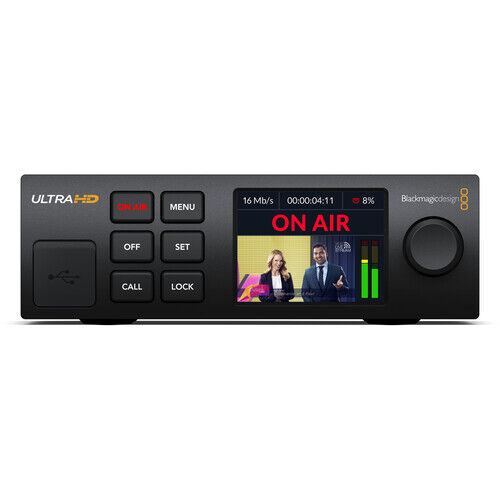

  • Front Panel Buttons & Spin Knob
  • 100-240 VAC & 12 VDC Power Inputs

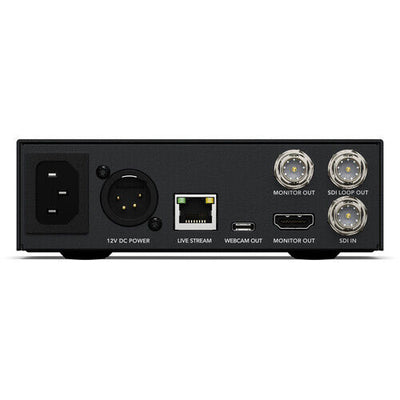

The encoder is equipped with 12G-SDI connectivity, supporting resolutions up to DCI 4K60 via an SDI input and an SDI loop output. The unit also features SDI and HDMI monitor outputs. Video, audio, status, and menu settings may be monitored via the integrated 2.2" LCD screen. There is also an option to connect the device as a webcam to a computer via its rear-panel USB-C port. The front panel features six buttons and a spin knob for tactile control, and the unit may be powered via its rear 100-240 VAC and 12 VDC 4-pin XLR ports.

Blackmagic Design Streaming Encoder 4K0 Specs

Key Specs

IP Video

H.264/H.265:
4096 x 2160 Encoding
Video I/O

1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output
1x HDMI Monitor Output
Embedded Audio

SDI Input: 16-Channel
SDI Output: 16-Channel
HDMI Output: 2-Channel
LAN (RJ45)/USB Output
Power Consumption

(25 W)
Display

LCD

IP Encoding/Decoding

IP Video

H.264/H.265:
4096 x 2160 Encoding
Transport Protocols

RTMP, SRT
Compatible Services

Facebook Live, Twitch, YouTube Live

Wireless

Wireless

No
Wi-Fi

No
Bluetooth

No
Cellular Support

5G NR / 4G LTE via Unspecified SIM Type

Interfaces

Video I/O

1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output
1x HDMI Monitor Output
Other I/O

1x RJ45 Fast Ethernet Input/Output
1x USB-C Output
1x USB-C Input/Output
Embedded Audio

SDI Input: 16-Channel
SDI Output: 16-Channel
HDMI Output: 2-Channel
LAN (RJ45)/USB Output

Power

Power I/O

1x IEC C14 Input
1x XLR 4-Pin Input
Power Consumption

(25 W)

General

Operating Conditions

32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions

-4 to 113°F / -20 to 45°C at 0 to 90% Humidity
Display

LCD
Rackmount Size

1 U
Dimensions

6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm
Weight

1.66 lb / 753 g
