Hollyland · Rental
$35.00 per day · 4–7 days charged as 3 days · weekend hires charged as 3 days
Rental agreement: not signed yet. You must complete and sign it before booking.
Takes about 2 minutes. Bring photo ID and the security bond to pickup.
Pickup and return: Shop 2, 8-10 The Avenue, Hurstville NSW 2220.
Features

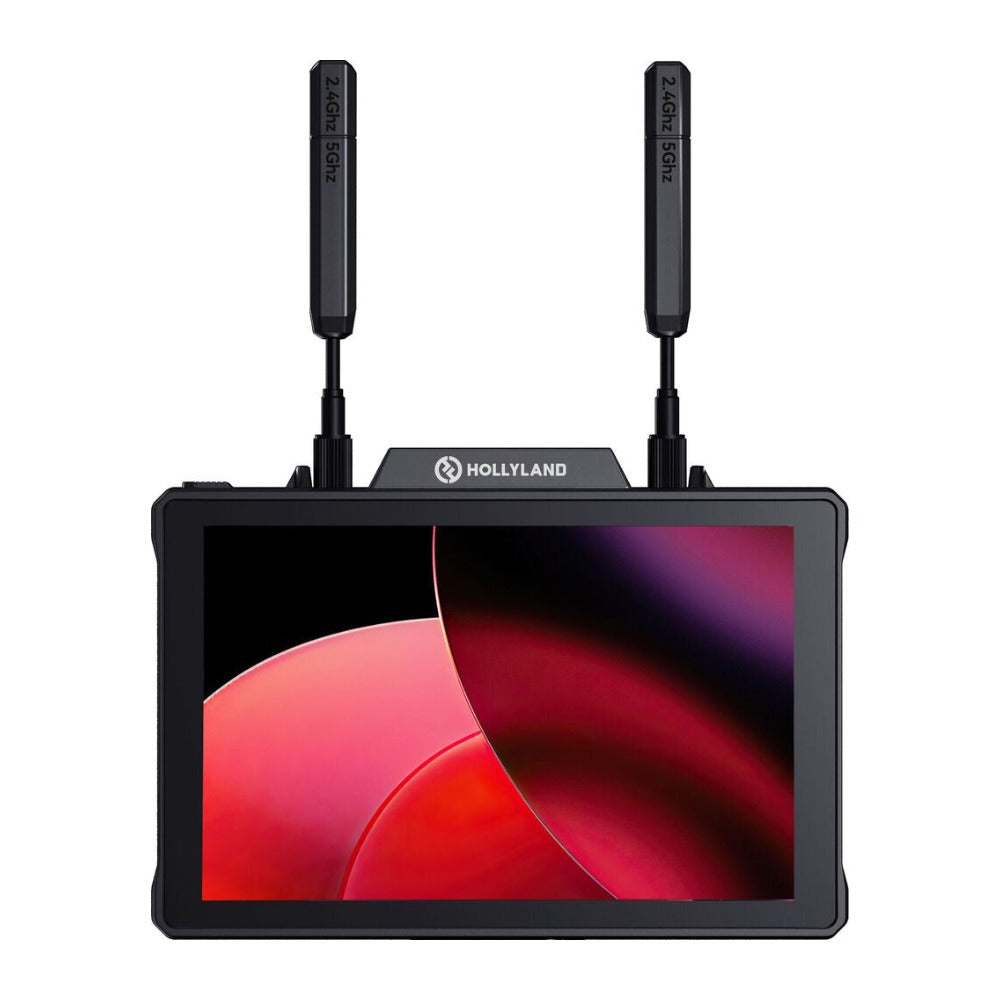

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Broadcast Mode
The Pyro 7 features wireless broadcast technology that enables one transmitter to connect to up to four receivers with stable, line-of-sight signals. When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers, and when it's deactivated, the transmitter can transmit signals to up to two receivers and two mobile devices.
Large, Bright Monitor
The Pyro 7 features a 7" display with a brightness of 1200 cd/m², so it's clearly viewable whether you are in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.
Versatile I/O
The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.
Quick Source Switching
The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.
Long Transmission Range
Utilizing 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 1300' with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bitrate up to 12 Mb/s, even up to 1300' away.
Auto Dual-Band Hopping (ADH)
With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.
RTMP Streaming
With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.
Video Recording to SD Card
The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.
Image Tools
The custom shortcut key feature that can be used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist, and other image analysis functions.
Key Specs
7.0" / 17.8 cm
1920 x 1200
Yes
No,
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 1.4b Input 1x HDMI 1.4b Output
Single Slot: SD/SDHC/SDXC
HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
No
2x L-Series (Interchangeable Mount)
22 W (Maximum)
1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) 1x 1/4"-20 Female (Bottom)
Display
LCD
16:9
1200 nits / cd/m2
1000:1
323 ppi
50 ms
SDR
Focus Peaking, Waveform
Inputs / Outputs
2x RP-SMA Male
HDMI/SDI: 8-Channel
1x 1/8" / 3.5 mm Headphone Output
1x Barrel Input
1x USB-C (Firmware) Input
1300' / 396.2 m (Line-of-Sight) 650' / 198.1 m
40 MHz, 20 MHz
US: 5.1 to 5.8 GHz US: 2.412 to 2.484 GHz
60 ms
23 dBm
-80 dBm
Yes, Required: Android & iOS App Name: HollyView Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
Format Support
4-Channel
Compressed
Recording
Power
10 to 18 VDC at 2.5 A
Environmental
14 to 113°F / -10 to 45°C
-40 to 140°F / -40 to 60°C
General
Aluminum, Magnesium
180 x 127 x 31.8 mm (Excluding Antenna)
545 g, Excluding Antenna
Features:
5.5" Display with 1500 nits brightness – crystal-clear visibility in any environment
1TX & 4RX, 400m LOS Range (1080P60) – reliable transmission flexibility
Camera Control via cable – direct control for efficient workflows
Proxy Recording – convenient backup recording on set
Seamless Pyro Ecosystem – fully compatible with Pyro H, Pyro S, and Pyro 7
Dual-Band with Ultra-Low Latency (0.06s) – smooth, real-time monitoring
SDI & HDMI Ports – versatile connectivity options

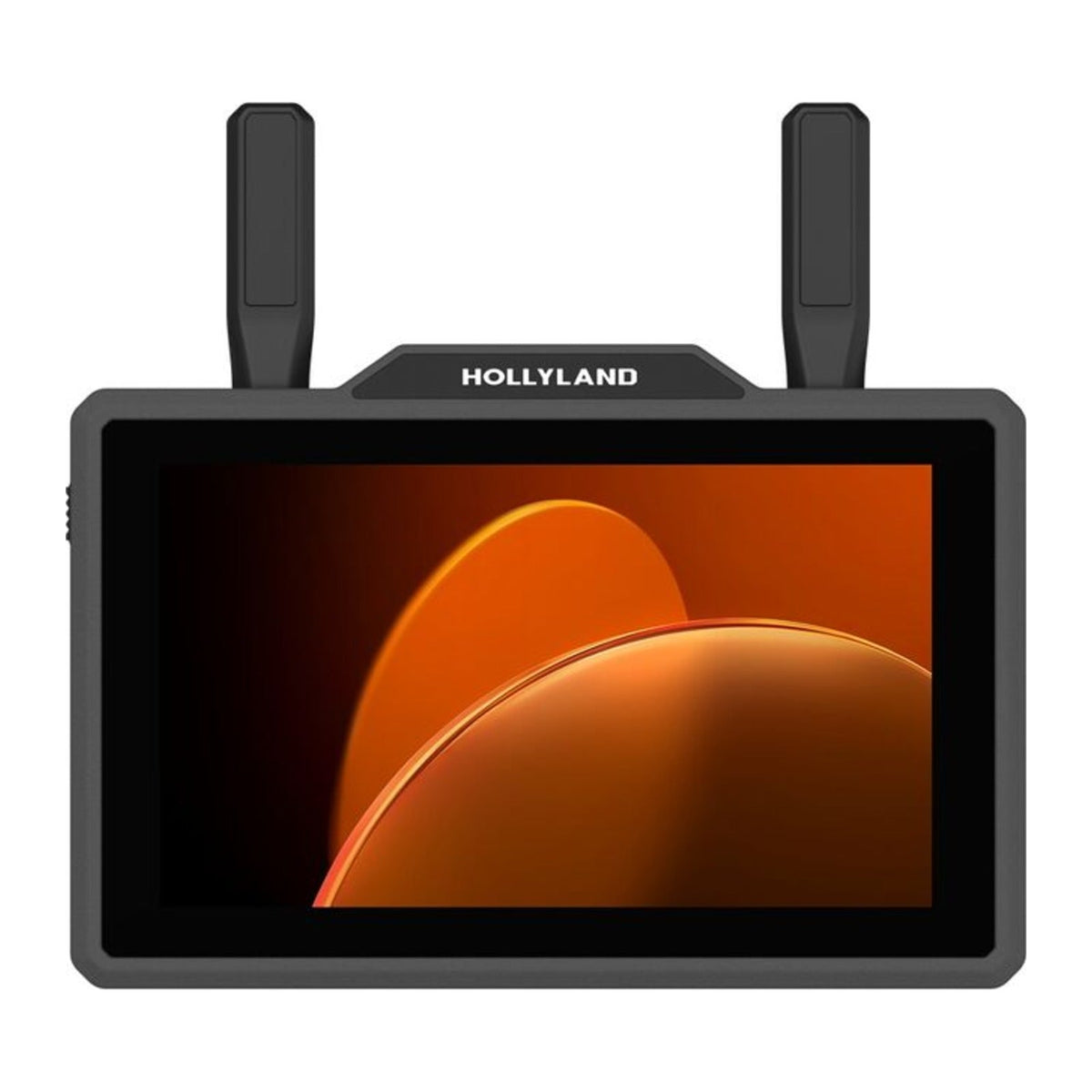

The Pyro 5 is a compact 5.5-inch wireless monitor built for on-set versatility. Featuring dual-band transmission, four-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a daylight-viewable 1500-nit display, it combines multiple functions into one powerful tool. With proxy recording and RTMP live streaming, Pyro 5 goes beyond monitoring—serving as your multi-tasking hub designed to streamline and accelerate production workflows.
Powered by advanced Wi-Fi Broadcast technology, a single transmitter can connect with up to four receivers while maintaining stable, real-time video transmission.
Broadcast Mode (On): One transmitter supports up to four receivers with intelligent view switching and auto frequency hopping. Stable up to 200m (line-of-sight) or 100m (back-to-back).
Broadcast Mode (Off): Maintains one-to-four transmission with an extended range of 400m (line-of-sight) or 150m (back-to-back).
Built with 2.4G/5G dual-band technology, Pyro 5 automatically adapts to interference-heavy environments, ensuring smoother, more reliable video feeds.
With its intuitive 5.5-inch touchscreen, Pyro 5 provides direct access to essential camera settings—shutter speed, aperture, focus, focus mode, white balance, trigger, and ISO—right at your fingertips.
Record proxy files directly onto an SD card or USB drive while monitoring in real time. Files are automatically organized into folders and now include timecode for frame-accurate editing.
Switch seamlessly between camera groups, enabling faster, more efficient live production setups.
A bright, high-contrast screen ensures clear visibility even under challenging outdoor lighting conditions.
Auto Frequency Hopping: Continuously scans signal strength across frequency ranges to ensure a reliable connection.
Smart Channel Selection: On startup, Pyro 5 automatically locks onto the best available channel. Manual scanning is also supported, with real-time signal strength indicators.
Choose the mode that best suits your shoot:
HD Mode: 12 Mbps bitrate with minimum 75ms latency, ideal for critical monitoring.
Smooth Mode: Adaptive bitrate with ultra-low 60ms latency for long-distance transmission.
Improved accuracy and ease of use for fast, on-set decision-making.
Supports HDMI and SDI loopout for seamless integration with diverse production setups.
Prevents cross-connections when multiple Pyro systems are used on the same set.
A dual-injection shell offers strength without excess weight, while quick-install antennas simplify setup, transport, and storage. Every detail is engineered for demanding on-set use.
Stream directly to Zoom, YouTube Live, TikTok, and more using the HollyView App with RTMP support. Simply connect a 4G LTE Wi-Fi modem, enter your stream key, and go live—no extra setup required.
What's in the box:
1 x Pyro 5 Wireless Transceiving Monitor 2 x Easy-Install Short Antenna 1 x USB-C OTG Adapter*1
Hire Hollyland Pyro transceiver monitors: a bright on-set monitor with wireless video built in. Use one as a transmitter and others as receivers, or pair with Pyro S and Pyro H.
Hires of 4 to 7 days are charged as 3 days. Weekend hires are charged as 3 days.
Pickup and return at CineCiti, Shop 2, 8-10 The Avenue, Hurstville NSW 2220. Photo ID and a security bond are required at pickup.
