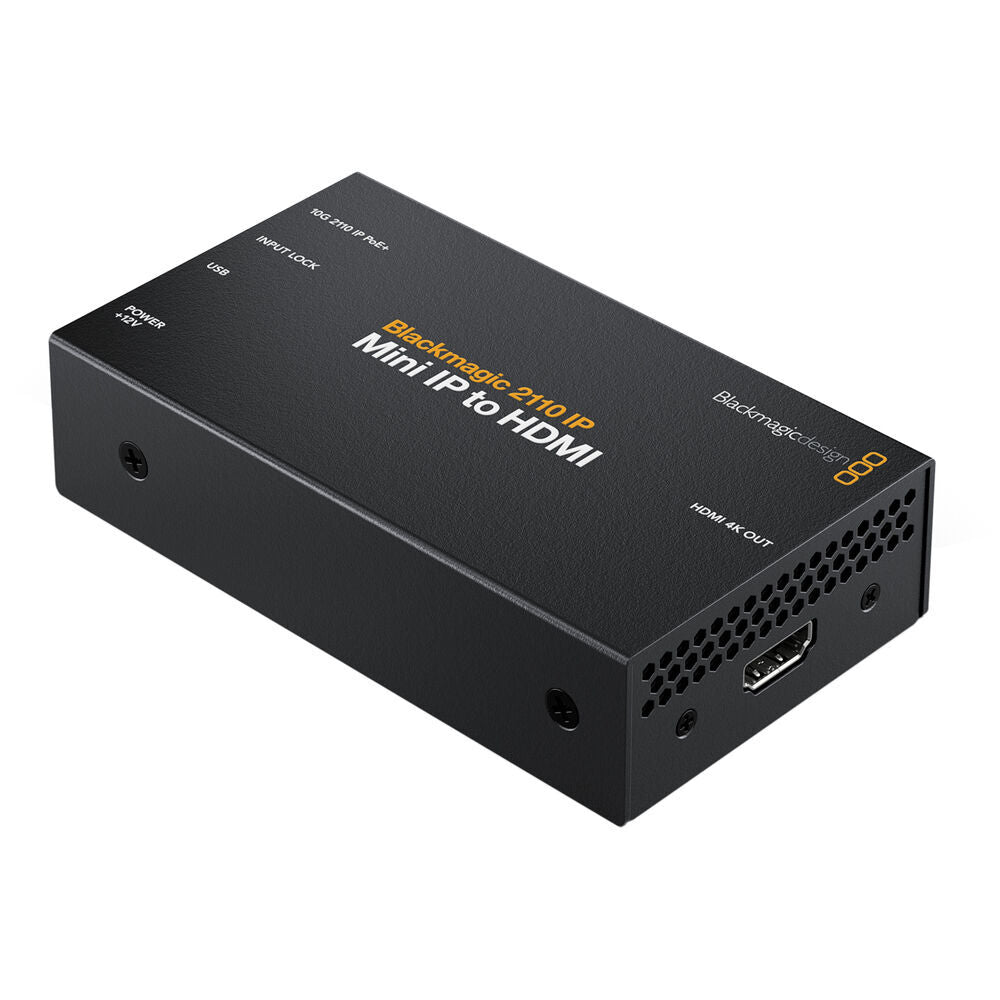

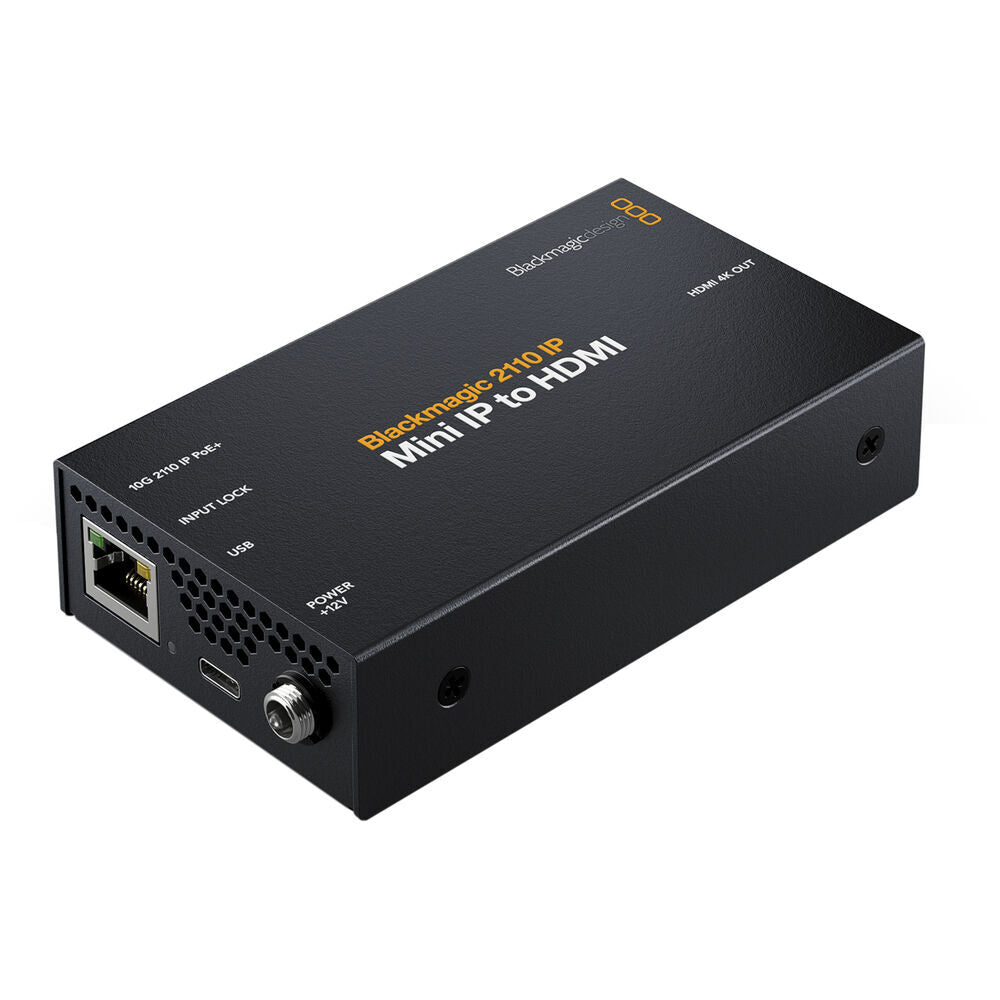

Blackmagic 2110 IP Mini IP to HDMI image 1

Blackmagic 2110 IP Mini IP to HDMI image 2

Blackmagic 2110 IP Mini IP to HDMI image 3

Blackmagic Design 2110 IP Mini IP to HDMI

Name: Blackmagic Design 2110 IP Mini IP to HDMI
Brand: Blackmagic Design
SKU: BMD-CONVNVIPE/IP/HDMI
Price: 589.00 AUD
Availability: OutOfStock

$589.00 AUD

Product variants

Pairs well with

Out of stock — no restock date yet.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Delivery Australia-wide

Enter your postcode to estimate postage

Features

2110 IP to HDMI Converter
Video Monitoring To/From Studio Cameras
Supports UHD 4K Video via SMPTE 2110 IP
Windows/macOS Software Utility
PoE++ and 10G Ethernet Power

Specs:

Video I/O	Input 1x RJ45 Female Output 1x HDMI Female
Audio I/O	No
Video Resolution	RJ45 Input (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps
Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11

Inputs / Outputs

Video I/O	Input 1x RJ45 Female Output 1x HDMI Female
Audio I/O	No
Other I/O	Input 1x USB-C (Firmware)
Expansion Slots	No

Format Support

Video Resolution

RJ45 Input (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Embedded Audio

HDMI/LAN (RJ45)

Standards

Video Standard Compliance	SMPTE: ST 2110-20/ST 2110-21
HDCP Support	No
HDR Compatibility	Yes
HDMI CEC	No
Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11

Power

Power I/O	1x Barrel (12 to 16 VDC) Input
PoE Support	PoE++ 802.3bt
Power Consumption	Device: 12 to 16 VDC (18 W)

Environmental

Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90%
Storage Humidity	0 to 90%

General

Dimensions	4.7 x 2.6 x 1.1" / 11.9 x 6.6 x 2.8 cm
Weight	7.23 oz / 205 g
