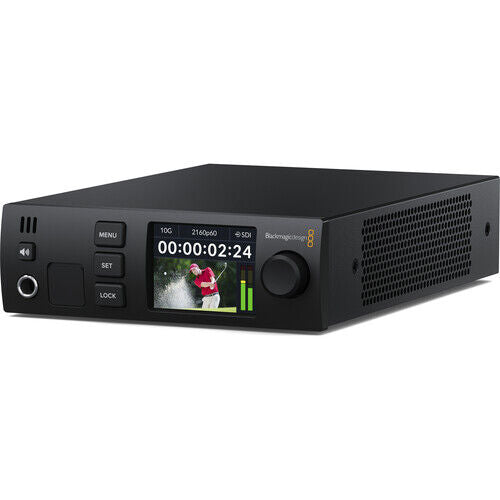

Blackmagic Design 2110 IP SDI to HDMI 12G Converter image 1

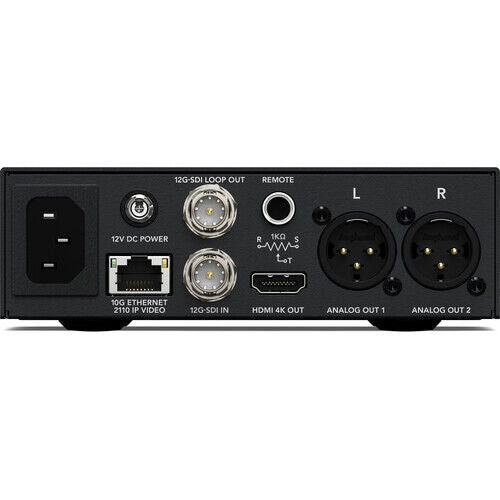

Blackmagic Design 2110 IP SDI to HDMI 12G Converter image 2

Vendor:Blackmagic Design

Blackmagic Design 2110 IP SDI to HDMI 12G Converter

$809.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design 2110 IP SDI to HDMI 12G Converter
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Converts from 12G-SDI or 2110 IP to HDMI
  • Rackmount Design, Front Panel Controls
  • LCD for Audio/Video Monitoring & Menus
  • Supports 3D LUTs for Color Calibration
  • Ideal for Color Grading & Edit Suites
  • 2 XLR Outputs

Variable gain and audio delay provide spot-on audio and video synchronization, with support for 3D LUTs for accurate monitor calibration. Designed to seamlessly integrate SDI gear with 2110 IP broadcast systems, the versatile converter offers an LCD for audio/video monitoring and menus, front-panel controls, and redundant power supply options for worry-free reliability.

Blackmagic Design 2110 IP SDI to HDMI 12G Converter Specs

Key Specs

Video I/O

Input
1x BNC (12G-SDI)
Output
1x BNC (12G-SDI) (Loop Output)
Output
1x HDMI (Unspecified Signal)
Audio I/O

Output
2x XLR 3-Pin Analog Male
1x 1/4" TRS Stereo Analog Female
Video Resolution

SDI Input/Output
3840 x 2160 up to 60 fps
HDMI Input/Output
3840 x 2160
RJ45 Input/Output
3840 x 2160 up to 60 fps
Audio Format

Analog Output
Broadcast System Compatibility

NTSC, PAL
Wireless

No

Inputs/Outputs

Video I/O

Input
1x BNC (12G-SDI)
Output
1x BNC (12G-SDI) (Loop Output)
Output
1x HDMI (Unspecified Signal)
Audio I/O

Output
2x XLR 3-Pin Analog Male
1x 1/4" TRS Stereo Analog Female
Other I/O

Input/Output
1x RJ45 (10 GbE)
Input
1x 1/4" TRS (Remote)
Expansion Slots

No
Latency

No

Format Support

Video Resolution

SDI Input/Output
3840 x 2160 up to 60 fps
HDMI Input/Output
3840 x 2160
RJ45 Input/Output
3840 x 2160 up to 60 fps
Audio Format

Analog Output
Embedded Audio

HDMI/LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST-2110
Broadcast System Compatibility

NTSC, PAL

Hardware

Wireless

No

Display

Display

LCD

Power

Power I/O

1x IEC C13 Input
1x Barrel (12 VDC ) Input

General

Rack Form Factor

1 U
