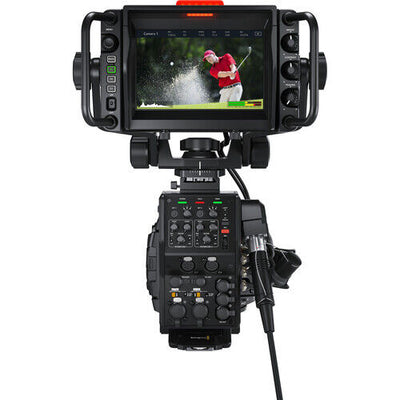

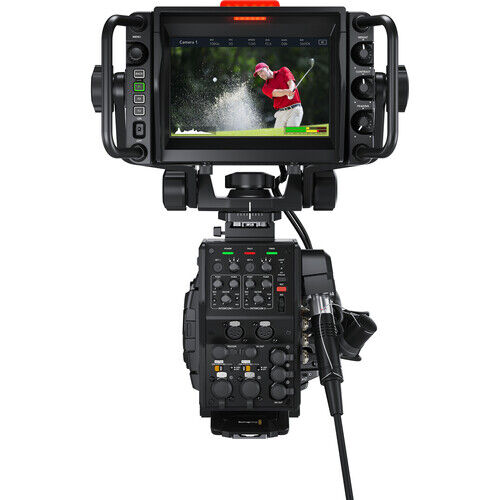

Blackmagic Design 7" URSA Studio Viewfinder G2 image 2

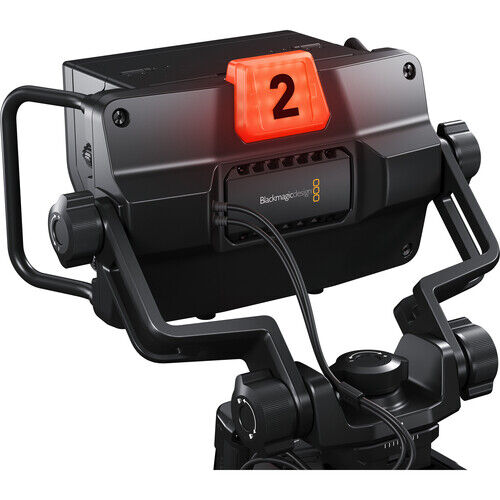

Blackmagic Design 7" URSA Studio Viewfinder G2 image 3

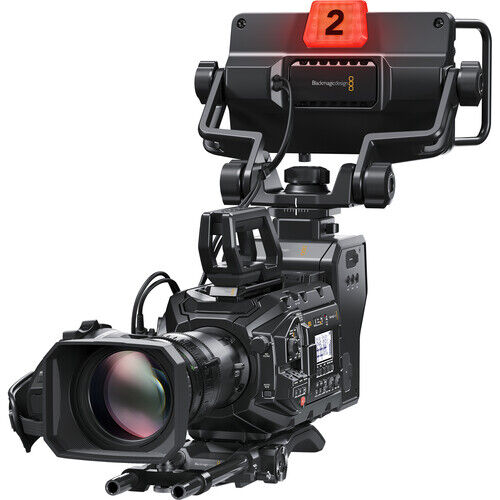

Blackmagic Design 7" URSA Studio Viewfinder G2 image 4

Vendor:Blackmagic Design

Blackmagic Design 7" URSA Studio Viewfinder G2

$2,355.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design 7" URSA Studio Viewfinder G2
  • Sun Hood
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Designed for URSA G2/URSA Mini Cameras
  • 7" 1920 x 1200 TFT LCD Screen
  • 3G-SDI Connector to Camera
  • 2000 cd/m² Brightness
  • 4-Pin XLR Power, V-Lock Mount
  • Rotary Dials, Customizable Buttons
  • Detachable Sun Hood

Blackmagic Design URSA Studio Specs

Key Specs

Panel Type

TFT LCD
Display Size

7.0" / 17.8 cm
Screen Resolution

1920 x 1200
Image Controls

False Color, Focus Assist, Focus Peaking, Screen Markers
Inputs/Outputs

1x BNC (3G-SDI) Video Input
1x XLR 4-Pin Power Input
1x USB-C 2.0 Data Input

Display

Panel Type

TFT LCD
Display Size

7.0" / 17.8 cm
Screen Resolution

1920 x 1200
Aspect Ratio

16:10
Touchscreen

No
Maximum Brightness

2000 nits / cd/m2
Pixels Per Inch (ppi)

323 ppi
Image Controls

False Color, Focus Assist, Focus Peaking, Screen Markers

Inputs / Outputs

Inputs/Outputs

1x BNC (3G-SDI) Video Input
1x XLR 4-Pin Power Input
1x USB-C 2.0 Data Input
Video Format

SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Input Power

12 VDC

General

Operating Conditions

32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions

-4 to 140°F / -20 to 60°C
Tripod/Accessory Mounting

Back
1x V-Lock
Dimensions

11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket)
Weight

5.3 lb / 2.4 kg
