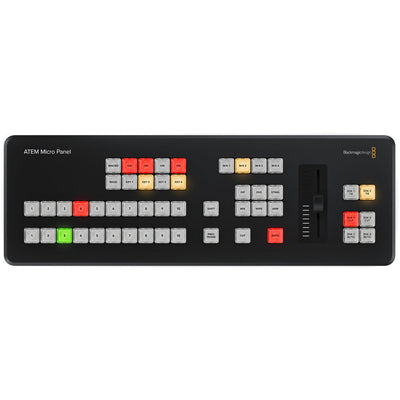

Blackmagic Design ATEM Micro Live Stream Switcher Panel image 1

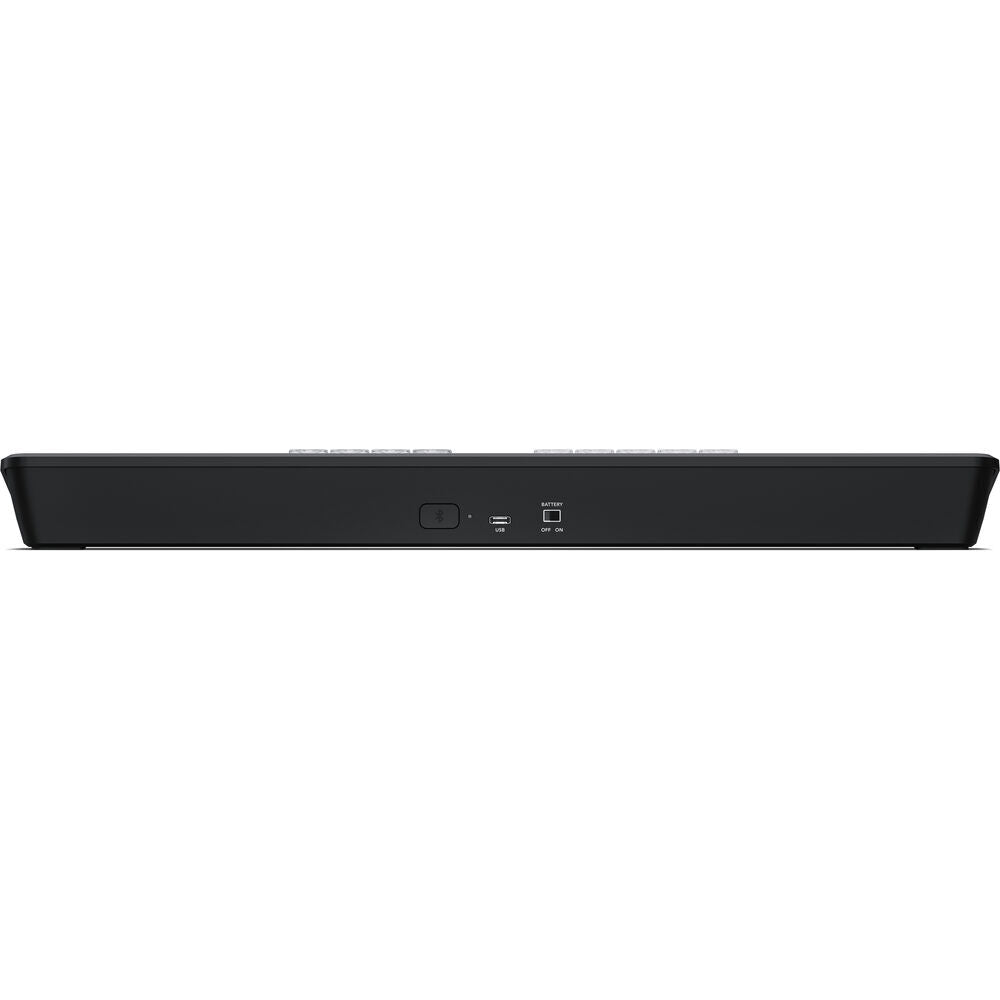

Blackmagic Design ATEM Micro Live Stream Switcher Panel image 2

Vendor:Blackmagic Design

Blackmagic Design ATEM Micro Live Stream Switcher Panel

$1,035.00 AUD

Pairs well with
Out of stock — no restock date yet.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Delivery Australia-wide

Enter your postcode to estimate postage

Items Included

  • Blackmagic Design ATEM Micro Live Stream Switcher Panel
  • Limited 1-Year Manufacturer Warranty

Key Features

  • For ATEM Constellation Switchers
  • Works with ATEM Software Control
  • Connects via Bluetooth, USB
  • 2 x 10 Input Buttons for Program/Preview
  • Transition Control, Fader
  • Macro Key

High-quality backlit buttons and a low-profile manual transition fader emulate the design of the larger ATEM Advanced Panels. The Micro Panel features a USB-C port to connect to your personal computer with ATEM Software Control. You can even wirelessly connect using the internal Bluetooth 5.1 LE signal. A large internal battery keeps the panel going for long production days and can be turned on and off with an onboard switch.

Control Configuration

  • 1 mix effect row
  • 10 direct cross-points
  • 20 shifted cross-points
  • 1 preview transition
  • 4 M/E select buttons
  • 4 upstream key buttons
  • 2 downstream key buttons
  • 1 transition slider
  • CUT and AUTO switching-type buttons
  • DIP, DVE, STINGER, MIX, and WIPE transition-type buttons

Blackmagic Design ATEM Micro Panel Specs

Controls

50x Pre-Labeled Key
Display

No
OS Compatibility

macOS 13.0 to 14.0
Windows 10 to 11

Inputs / Outputs

USB I/O

1x USB-C Female Input (System Connection)

Power

Power Source

Battery

Physical

Operating Conditions

41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions

-4 to 113°F / -20 to 45°C
Dimensions

16.14 x 5.35 x 1.63" / 41 x 13.59 x 4.14 cm
Weight

2.31 lb / 1.05 kg
