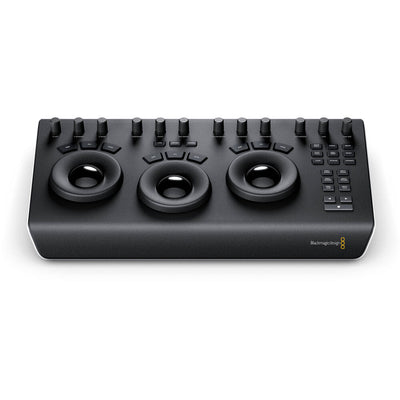

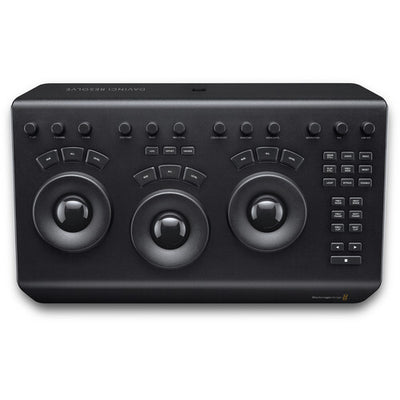

Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software

Items Included

• Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software
• USB 3.0 Type-C to USB Type-A Cable
• DaVinci Resolve Studio Software Activation Key
• Limited 1-Year Manufacturer Warranty (on Hardware)



Key Features

• 3 x High-Resolution Trackballs
• 12 x Primary Correction-Control Knobs
• 18 x Navigation and Transport Keys
• USB Type-C Interface
• Supports Mac and Windows
• Supports Select Linux Installations
• USB 3.0 Type-A to Type-C Cable Included

Primary Correction Creative Control Knobs

Control knobs are grouped into four sets of three knobs.

Luminance

• Y lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
• Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.

Contrast

• Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
• Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
• Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features, making it popular for beauty shots.

Detail

• Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without oversaturating the image.
• Shadow Control: Selectively lighten or darken shadow detail without affecting your image's mid-tones.
• Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones for a natural-looking image.

Saturation

• Increases or decreases overall image saturation. You can turn your color image into a grayscale image with this control.
• Hue Control: Rotate all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
• Luminance Mix Control: Control the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

System Requirements for DaVinci Resolve

System requirements as of DaVinci Resolve 18:

Minimum System Requirements for Mac OS

• macOS 11 Big Sur
• 8GB of system memory; 16GB when using Fusion
• Blackmagic Design Desktop Video version 12.0 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports Metal or OpenCL 1.2

Minimum System Requirements for Windows

• Windows 10 Creators Update
• 16GB of system memory; 32GB when using Fusion
• Blackmagic Design Desktop Video 10.4.1 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD/Intel GPU Driver version–as required by your GPU

Minimum System Requirements for Linux

• CentOS 7.3
• 32GB of system memory
• Blackmagic Design Desktop Video 10.4.1 or later
• Discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD Driver version–as required by your GPU

Blackmagic Design DaVinci Resolve Micro Specs

Controls	30x Pre-Labeled Key 12x Dial 3x Trackball
Display	No
OS Compatibility	Windows 10 or Later macOS 10.15 or Later CentOS 7.3 or Later

Inputs / Outputs

USB I/O

1x USB-C Female Input

Power

Power Source	USB
Power Consumption	2 W (Maximum)

Physical

Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	16.81 x 10.15 x 2.95" / 42.7 x 25.78 x 7.49 cm
Weight	7.9 lb / 3.6 kg
