Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G image 1

Vendor:Blackmagic Design

Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G

$125.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G
  • Limited 3-Year Manufacturer Warranty

Key Features

  • For Decklink 4K Extreme 12G Main Board
  • 2 x 3G-SDI Inputs, 2 x 3G-SDI Output
  • Replacement for Original Daughter Card

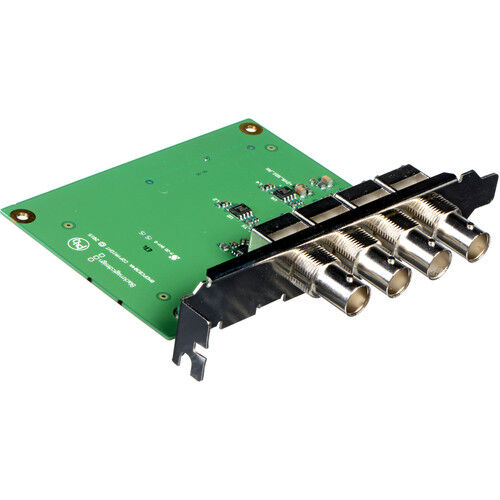

The daughter card features four BNC connectors that support 3G-SDI. The four connectors are grouped into two input and two output connectors that work in conjunction with the four 12G-SDI connectors on the main board. Replacing your original daughter (mezzanine) card with this one expands your cards input and output capabilities.

Replacing the original HDMI/optical fiber output daughter card with the Quad 3G-SDI board allows you to input and output a Quad 3G-SDI signal, which the main board cannot do by itself. Another input/output capability of the card is to input a 12G-SDI signal and output a Quad 3G-SDI signal.

Requires 10.4.2 driver to operate.

This daughter card only works when connected to the optional main board.

Blackmagic Design Quad Specs

Minimum Requirements

Driver: 10.4.2
Connectors

4 x BNC (Quad Link 3G-SDI)
