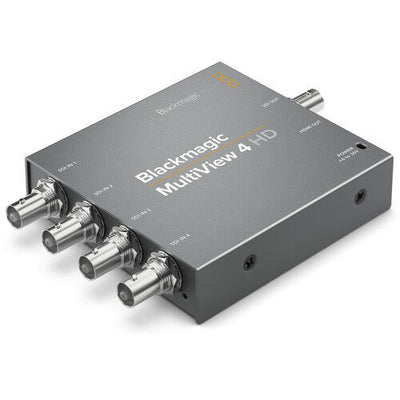

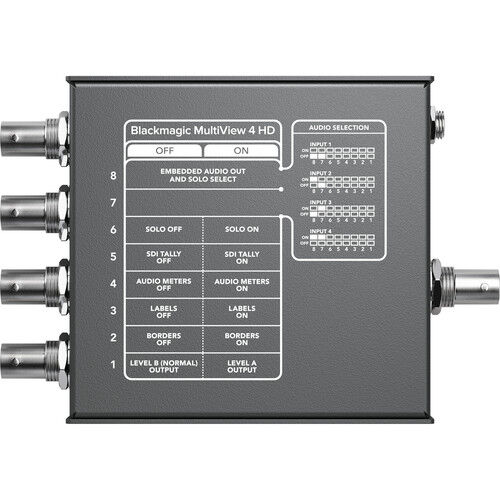

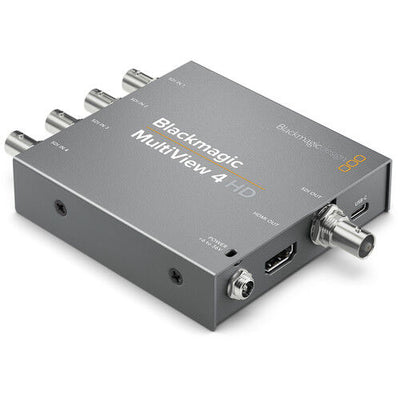

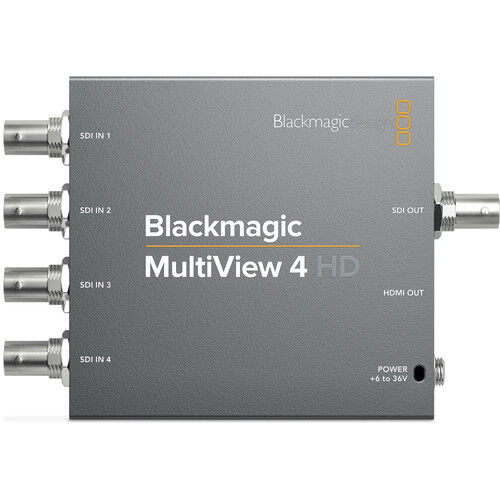

Blackmagic Design MultiView 4 HD
Pairs well with
1-Year Warranty
Couldn't load pickup availability
Pickup currently unavailable at Shop Front
Items Included
- Blackmagic Design MultiView 4 HD
- 12V Universal Power Supply
- International Socket Adapters
- Limited 3-Year Manufacturer Warranty
Key Features
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Display Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer
Blackmagic Design MultiView 4 HD Specs
Key Specs
| Inputs | 4 x BNC (3G-SDI) |
| Embedded Audio | SDI |
| Outputs | 1x BNC (3G-SDI) |
| Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV, RGB) |
Interfaces
| Inputs | 4 x BNC (3G-SDI) |
| Embedded Audio | SDI |
| Outputs | 1x BNC (3G-SDI) |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B |
| Reclocking | No |
| HDR Support | No |
| HDCP Support | No |
| EDID Support | Yes |
| OS Compatibility | macOS 10.15 |
Transmission
| Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV, RGB) |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
Power
| Power I/O | 1x Barrel Input |
| Power Consumption | 6 to 36 VDC (5.5 W) |
General
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Dimensions | 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm |
| Weight | 8.53 oz / 0.24 kg |
