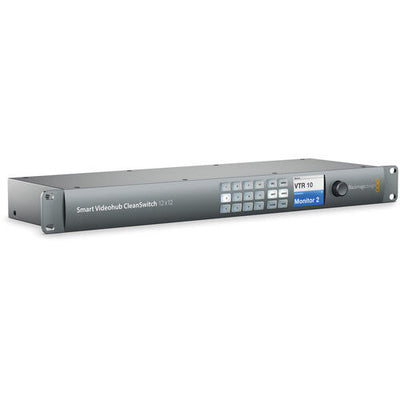

Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI image 1
Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI image 2

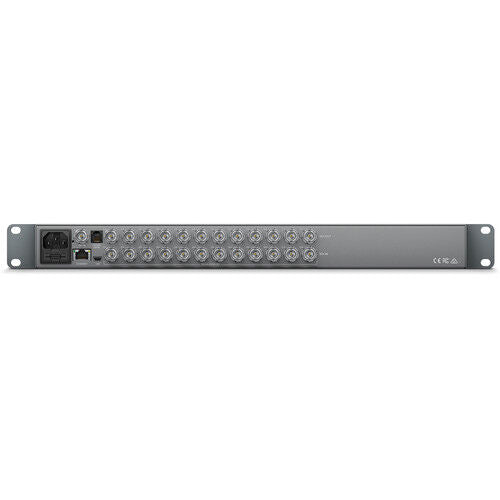

Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI image 3

Vendor:Blackmagic Design

Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI

$2,519.00 AUD

Pairs well with
In stock! Ships within 1-2 business days.

1-Year Warranty

Hurry, only 7 items left in stock!

Pickup currently unavailable at Shop Front

Delivery Australia-wide

Enter your postcode to estimate postage

Items Included

  • Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI
  • SD Card with Software
  • Limited 1-Year Manufacturer Warranty (Front Panel)

Key Features

  • Routing Switcher with Frame Syncing
  • 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs
  • Supports SD, HD, UHD 4K, DCI 4K
  • 4:2:2 and 4:4:4 Sampling
  • 10-Bit Processing
  • SDI Reclocking
  • Built-In LCD with Spin Knob Control
  • Push Buttons on Front Panel
  • Ethernet for Remote Control
  • Videohub Control Software Included

Blackmagic Design CleanSwitch Overview

  • 12x 6G-SDI inputs / 12x 6G-SDI outputs
  • Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
  • Built-in SDI reclocking on every SDI input
  • Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
  • 4:2:2 or 4:4:4 color sampling with 10-bit processing
  • UHD 4K (3840 x 2160) up to 30p
  • Supports DCI 4K (4096 x 2160) at 24p
  • HD Video Resolutions up to 1080p60
  • Supports 16 channels of embedded audio on each SDI signal
  • Genlock
  • Reference input compatible with black burst and tri-sync
  • Built-in video monitoring and spin knob control
  • Push buttons on front panel
  • On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
  • Videohub control software included for control over Ethernet
  • Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
  • Apple iPad control panel app available
  • Create your own custom router control with free software developer kit
  • Machined aluminum 1 RU chassis
  • IEC power cable required

Processing

Switching Type

Pushbutton, Software
Processing Resolution

DCI 4K at 60
Color Processing

8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing

48 kHz / 24-Bit

Input

Video Inputs

12x BNC (6G-SDI)
Input Video Format

SDI (10-Bit 4:4:4 RGB, YUV)
DCI 4K at 24 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K at 24 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input

SDI

Output

Video Outputs

12x BNC (6G-SDI)
Output Video Format

SDI (10-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output

SDI

Connectivity

Other I/O

1x BNC Reference
1x RJ11 RS-422
1x RJ45 LAN
1x Micro-USB RS-232
Video Standard Compliance

SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656
HDCP Support

Yes
HDR Support

Yes

Display

Display Size

2.2"

Hardware

OS Compatibility

macOS / Windows
Wireless

No

Power

Power I/O

1x IEC C14 (100 to 240 VAC ) Input

General

Operating Conditions

32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions

-4 to 113°F / -20 to 45°C
Certifications

FCC Class A
Rack Form Factor

1 U
Dimensions

19 x 6.3 x 1.73" / 48.3 x 16 x 4.39 cm
Weight

4.14 lb / 1.88 kg
