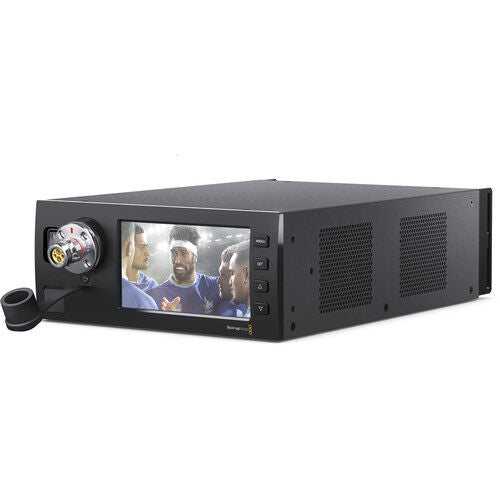

Blackmagic Design Studio Fiber Converter image 1

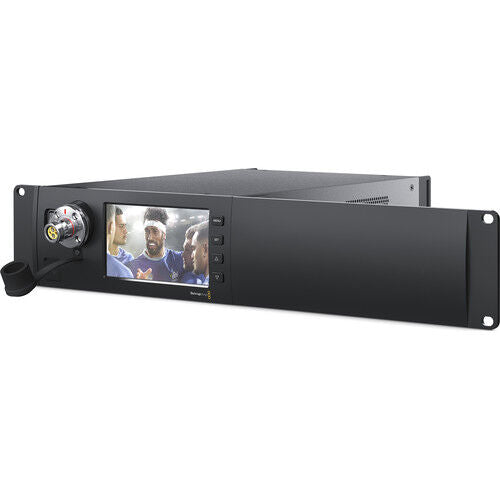

Blackmagic Design Studio Fiber Converter image 2

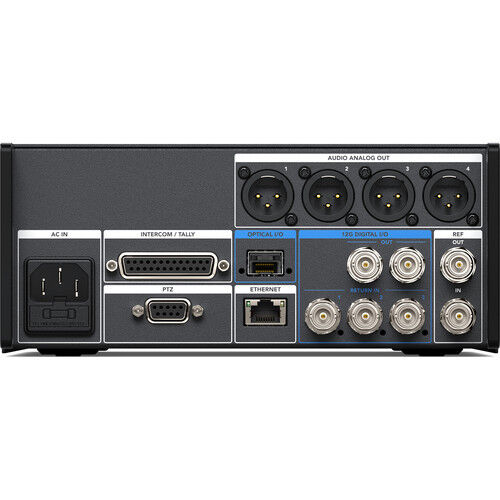

Blackmagic Design Studio Fiber Converter image 3

Vendor:Blackmagic Design

Blackmagic Design Studio Fiber Converter

$5,165.00 AUD

Pairs well with
Out of stock — call us to check availability.

1-Year Warranty

Out of stock

Pickup currently unavailable at Shop Front

Items Included

  • Blackmagic Design Studio Fiber Converter
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Connects to Camera Fiber Converter
  • For HD and UHD 4K Productions
  • Bi-Directional SMPTE Fiber Link
  • XLR Audio Breakout
  • Reference and Control Connections

Blackmagic Design CINEURSANWFRSTUD Specs

Connections

SMPTE Optical Fiber: 1 x SMPTE 304
12G-SDI Input: 3 x BNC
12G-SDI Output: 2 x BNC
Analog Audio Output: 4 x XLR
Optical Fiber Output: 1 x SFP
Computer: 1 x USB Type-C
Video Standards

3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.9
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI Standards

SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Audio Sampling

24-bit, 48 kHz
Video Sampling

4:2:2
Bit Depth

10-bit
Color Space

REC 709, REC 2020
Power

110 - 240 VAC
Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Relative Humidity: 0-90%, non-condensing
Dimensions

8.3 x 3.5 x 14.6" / 21 x 8.8 x 37.2 cm
Weight

6.2 lb / 2.8 kg
