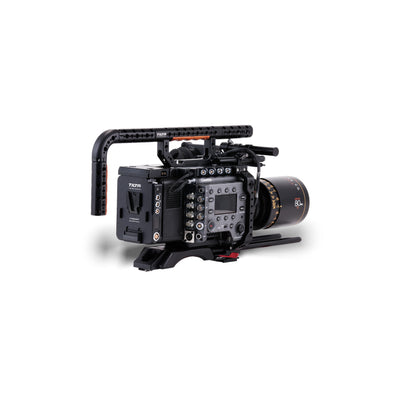

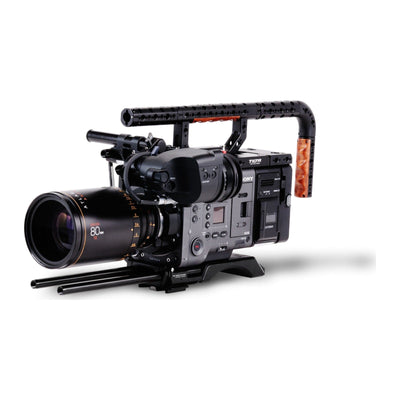

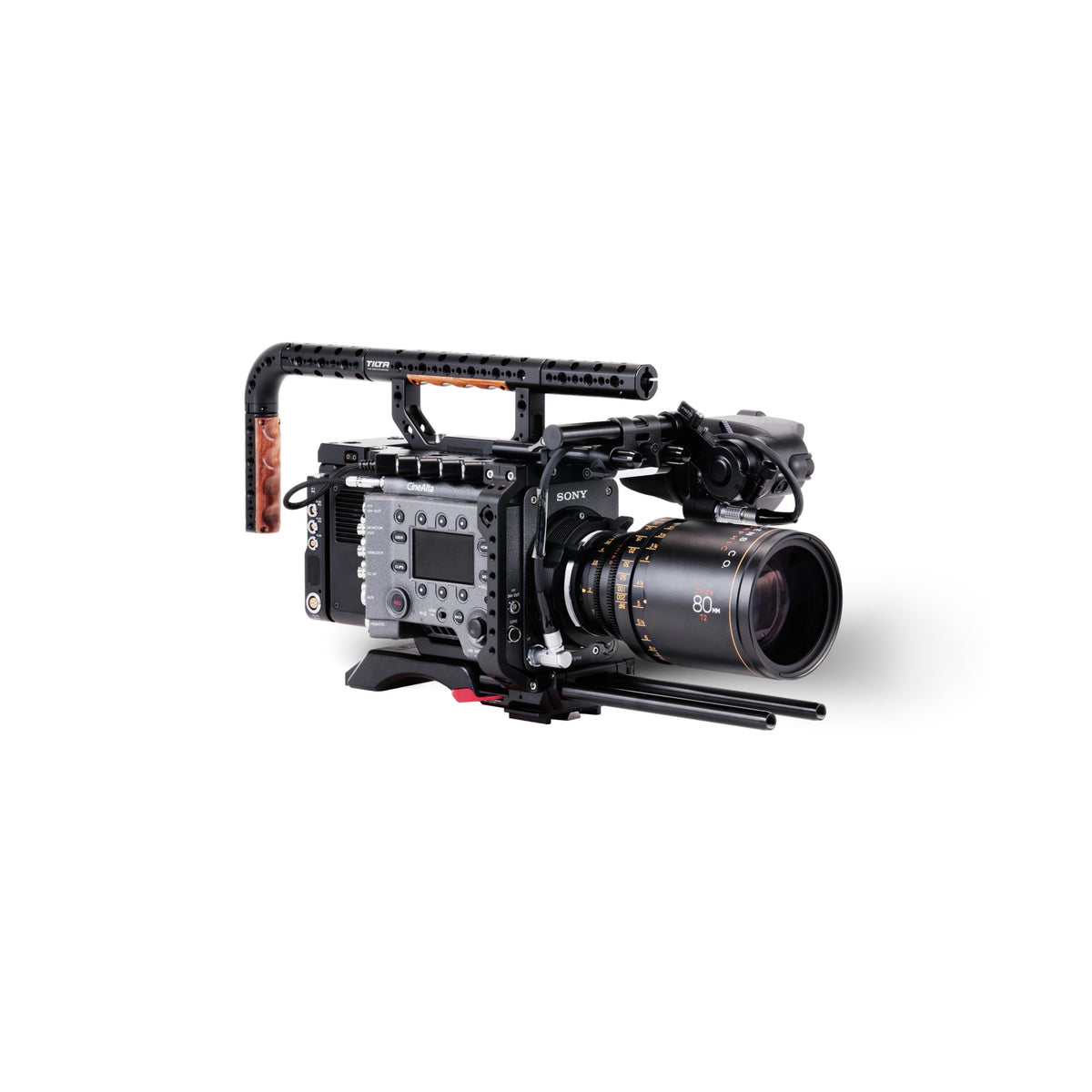

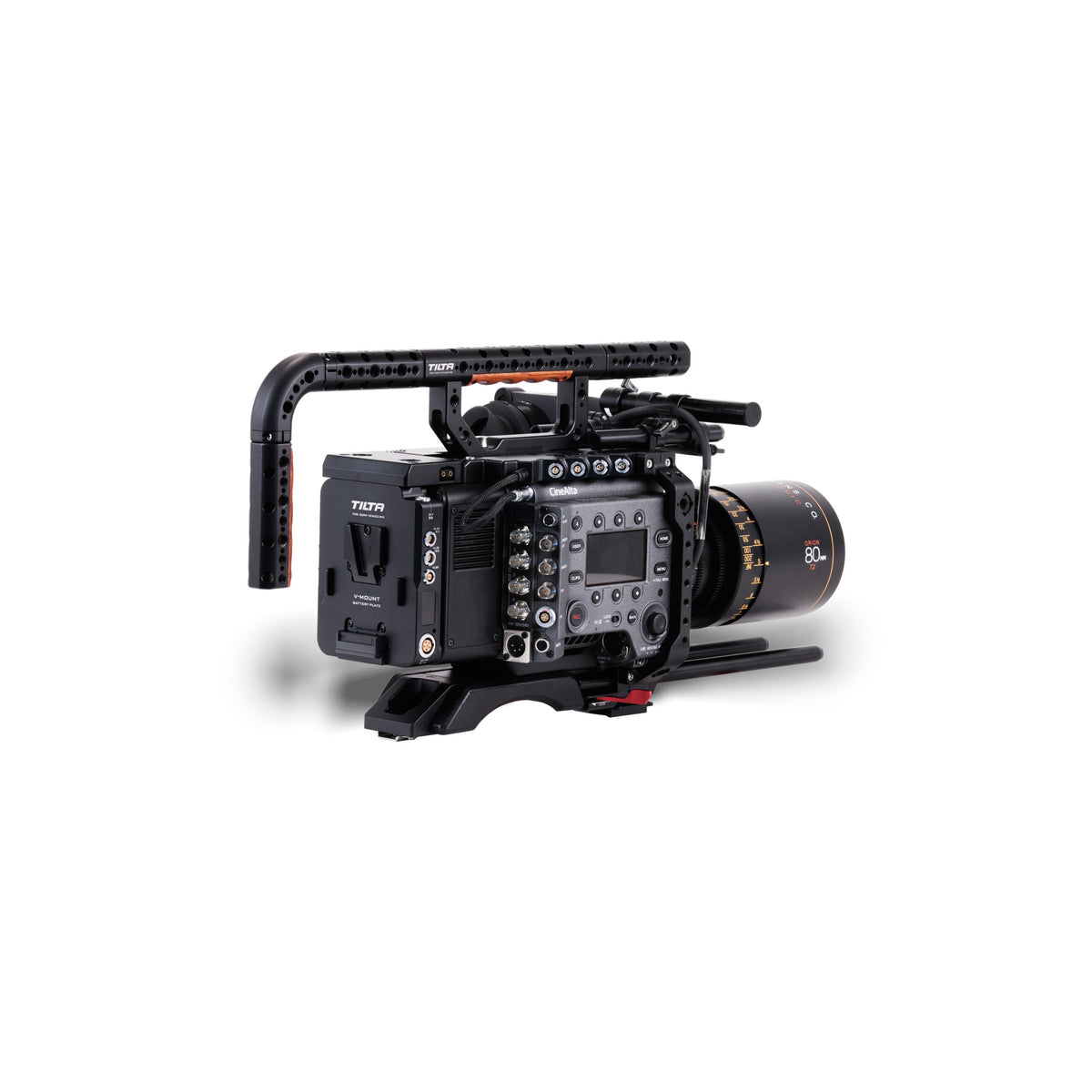

Tilta Sony Venice Rig with V mount battery plate

Arm your camera with this Tilta camera cage specifically designed for the Sony Venice.

It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Battery Plate for Sony Venice, available in either gold mount or V-mount, integrates with the top plate through a pin connection to provide several power outputs.

This allows you to power your accessories from virtually anywhere on the cage.

The top plate can be attached to the base camera but the cage also comes with an extension to the top plate if you have the AXS-R7 recorder attached.

This allows the top of the cage to lay across the camera and recorder all the way to the back of the battery plate. This extension piece also provides an extra P-tap port.

The top plate features a built-in 3-pin cable that when plugged into the Venice’s top 3-pin port sends R/S functionality to all of the cage’s 3-pin R/S ports.

The Venice’s EVF can be mounted off the top plate by attaching to the 15mm LWS rods that can be inserted to the front of the top plate.

The top handle can easily slide on and off the top plate to adapt the camera for Steadicam and gimbal setups.

Optional top handle extensions can be attached to provide a handle that hangs over the back of the battery plate for precise operating.

The baseplate features a built-in shoulder pad and is compatible with Tilta-standard dovetails. Photo may vary from actual package.

The optional Tilta Standard to Arri Standard Multi-Functional Baseplate can be purchased to adapt this cage to mount onto an Arri Standard Dovetail if needed.

Key Features

• [PROTECTIVE ARMOR] for the Sony Venice Minimizes Wear and Supports Accessories
• [POWER PASSTHROUGH] via Top Plate and Battery Plate Allow Accessories to be Powered Easily
• [LWS BASEPLATE] Supports 15mm Rods and Connects to Tilta Standard Dovetails
• [ADJUSTABLE TOP HANDLE] Can be Extended or Shortened to Accommodate Different Needs
• [HANDHELD READY] via Integrated Shoulder Pad

In the Box

• (1) Top Plate + 15mm Rod Adapter
• (2) 14.8V 2-Pin LEMO Output
• (2) 14.8V 3-Pin FISCHER Output with R/S Trigger
• (1) Built-in 3-Pin R/S Trigger Cable (to transfer R/S trigger from camera only; doesn’t transfer power)
• (1) Quick Release Top Handle
• (1) Recorder Module Extension Top Plate
• (1) P-TAP Output
• (1) V-Mount or Gold Mount Battery Plate
• (1) 14.8V 2-Pin LEMO Output
• (3) 14.8V 3-Pin FISCHER Output with R/S Trigger
• (1) 12-30V DC Power Input
• (1) Venice Side Arm
• (1) Venice Lightweight Baseplate
• Sony VCT Adapter
• Tilta Standard Adapter
• (1) Baseplate Extension Shoulder Pad
• (1) Front Extension Top Handle
• (1) Rear Extension Top Handle
• (1) 19mm Multi-functional Baseplate or (1) 15mm Multi-Functional Baseplate (Optional)
• (1) 12″ Arri Standard Dovetial Plate (Optional)
