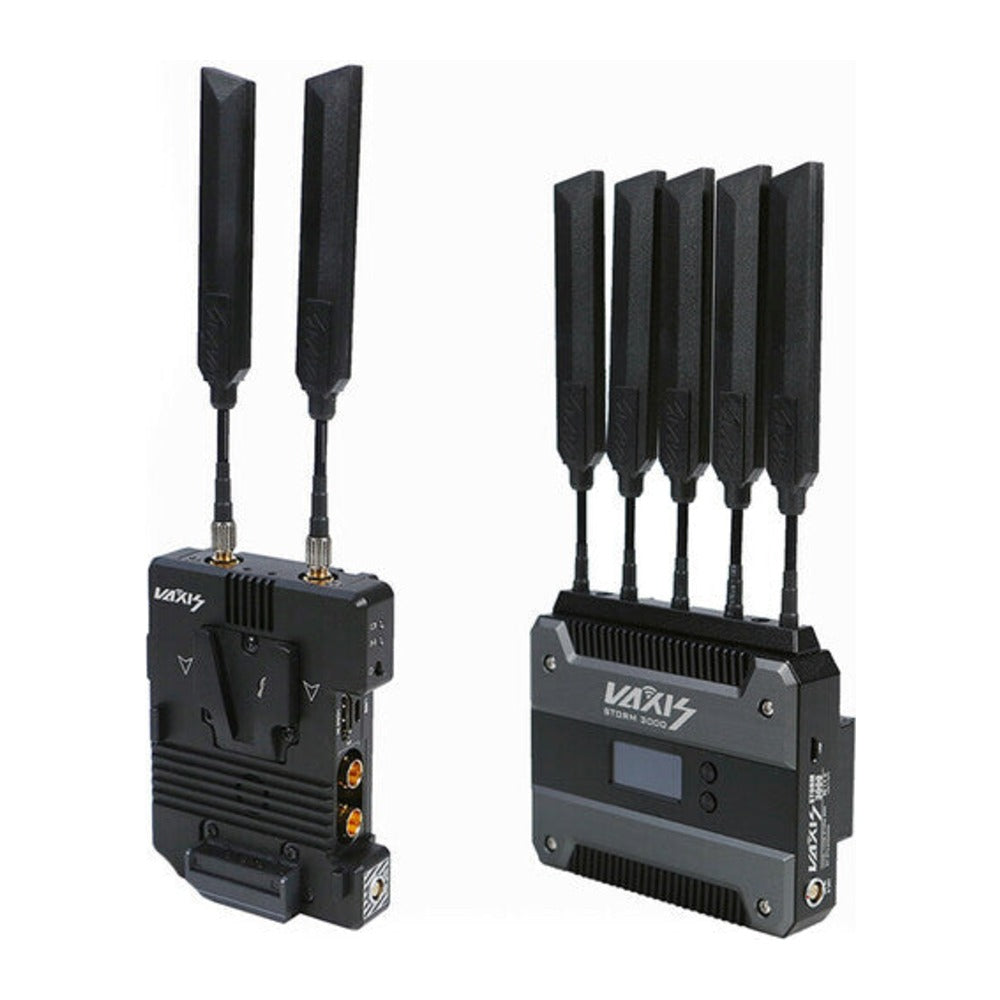

Vaxis Storm 3000 DV 3G-SDI/HDMI Wireless Transmission Kit

The Storm 3000 from Vaxis features a 3000'/1000m range and supports up to 1080p60 uncompressed signal transmission with less than 1 ms of latency over the 5.1 to 5.9 GHz frequency. The transmitter features 3G-SDI and HDMI inputs plus a 3G-SDI loop output, and the receiver has dual 3G-SDI simultaneous outputs and an HDMI output. Both units come with V-mount battery plates. Both also support continuous power via 2-pin LEMO power inputs. Two D-Tap to LEMO cables are included.

Other features include OLED displays, multicasting, timecode and metadata support, ARRI ALEXA Mini instant playback, and smart active cooling that allows for extended operation in hot environments. Both units are designed with a robust metal housing.

Key Features

• Up to 1080p60 uncompressed transmission
• 3000' range with less than 1 ms of latency over 5.1-5.9 GHz frequency
• User-configurable frequency bands

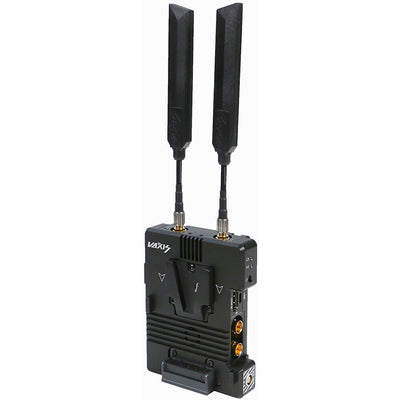

• Transmitter: SDI input, HDMI input, SDI loop output; V-mount battery plate

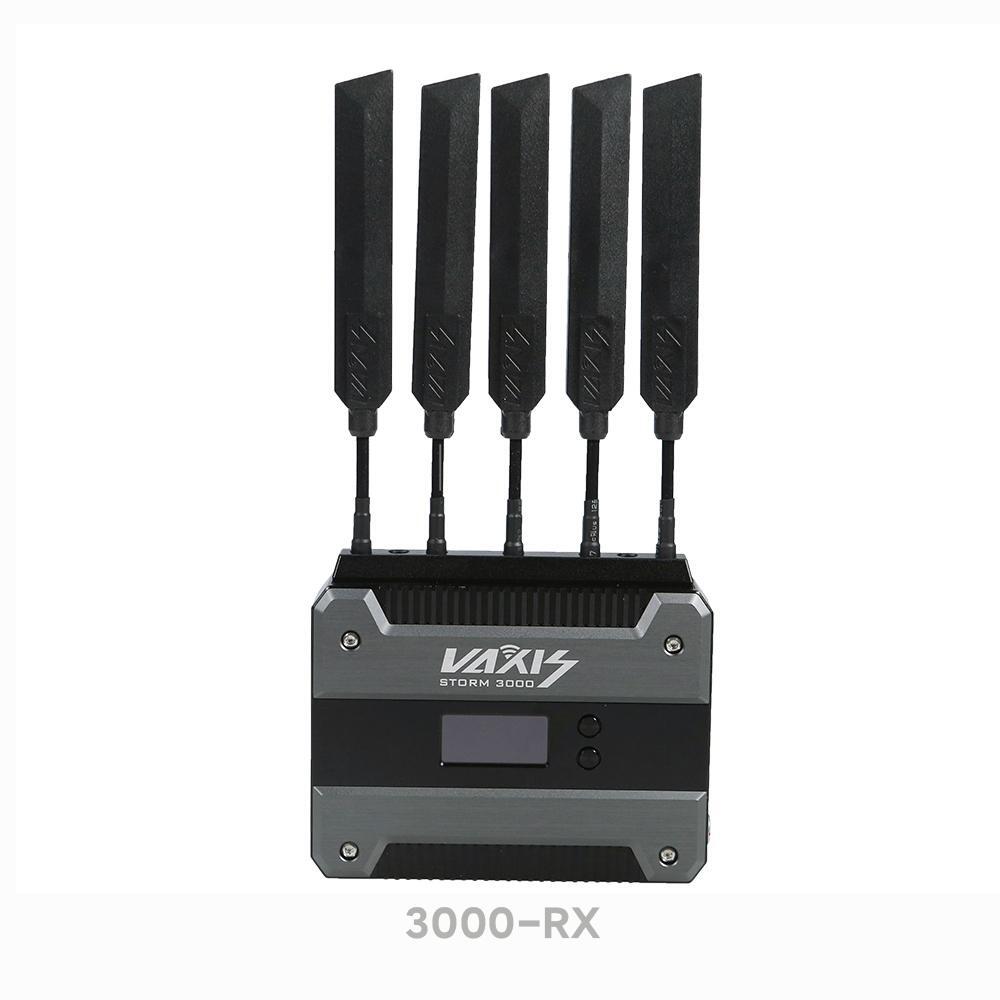

• Receiver: 2 x SDI outputs, HDMI output; V-mount battery plate
• 2-pin LEMO power inputs
• WHDI (MIMO/OFDM) technology
• ARRI ALEXA Mini instant playback
• Smart active cooling, allowing extended operation time in hot environments
• OLED screens
• Timecode and metadata support
• Multicasting
• All-metal housing
• Less than 63mW radio power
• 1/4"-20 mounting thread on the bottom of each unit

Light and Fast | Highly integrated structural design

Panel receiver adopting the industry-leading second-generation integrated structural solution, the volume is reduced by an average of 50% and the average weight is reduced by 20% compared to the same class of products in the market. It is lighter, thinner, and smaller.

Ultra-Long Transmission Range | 1.5 km Still clear and stable

Storm 3000FT as a Broadcast/Film-Video wireless transmission system, equipped with 14dBi high-gain panel antenna, Directional transmission distance up to 1.5km, the frame is still clear and stable at the extreme distance, omni-directional transmission distance can reach 450m. Support plug and play, no compression transmission, delay <1ms, can be widely used in film and television director monitoring, large-scale event, drone shooting / Flycam / Steadicam and so on.

Multi-Interface | Meet multi-sector simultaneous monitoring

Supports dual SDI + HDMI simultaneous output, and can connect multiple monitors or relay devices to enable simultaneous monitoring by different departments such as directors, Focus Puller, and Studios.

Compatible with Storm Series Transmitters

- Vaxis users only need to purchase the Panel receiver, combine with the existing Vaxis transmitter, the storm 3000FT ultra-long transmission distance can be obtained, and save the equipment upgrade costs.
- Using the Vaxis 3000FT with other Storm receivers, only need one transmitter can easily meet the monitoring requests of different distances and different departments, and set up a full set of on-site monitoring program.

Specifications:

Wireless

Interfaces

Format Support

Display

Power

Environmental

General

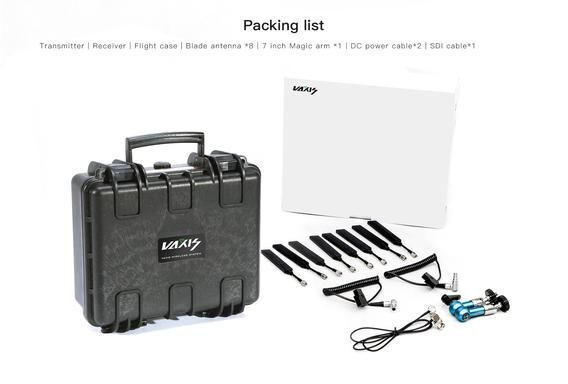

Content List:

1 x Vaxis Storm 3000 Transmitter
1 x Vaxis Storm 3000 Receiver
8 x Vaxis Blade Antennas
2 x Vaxis D-tap to lemo power cables
1 x Vaxis SDI 3G cable
1 x Vaxis 7" Magic Arm
1 x Vaxis Hard Shell Carry Case
